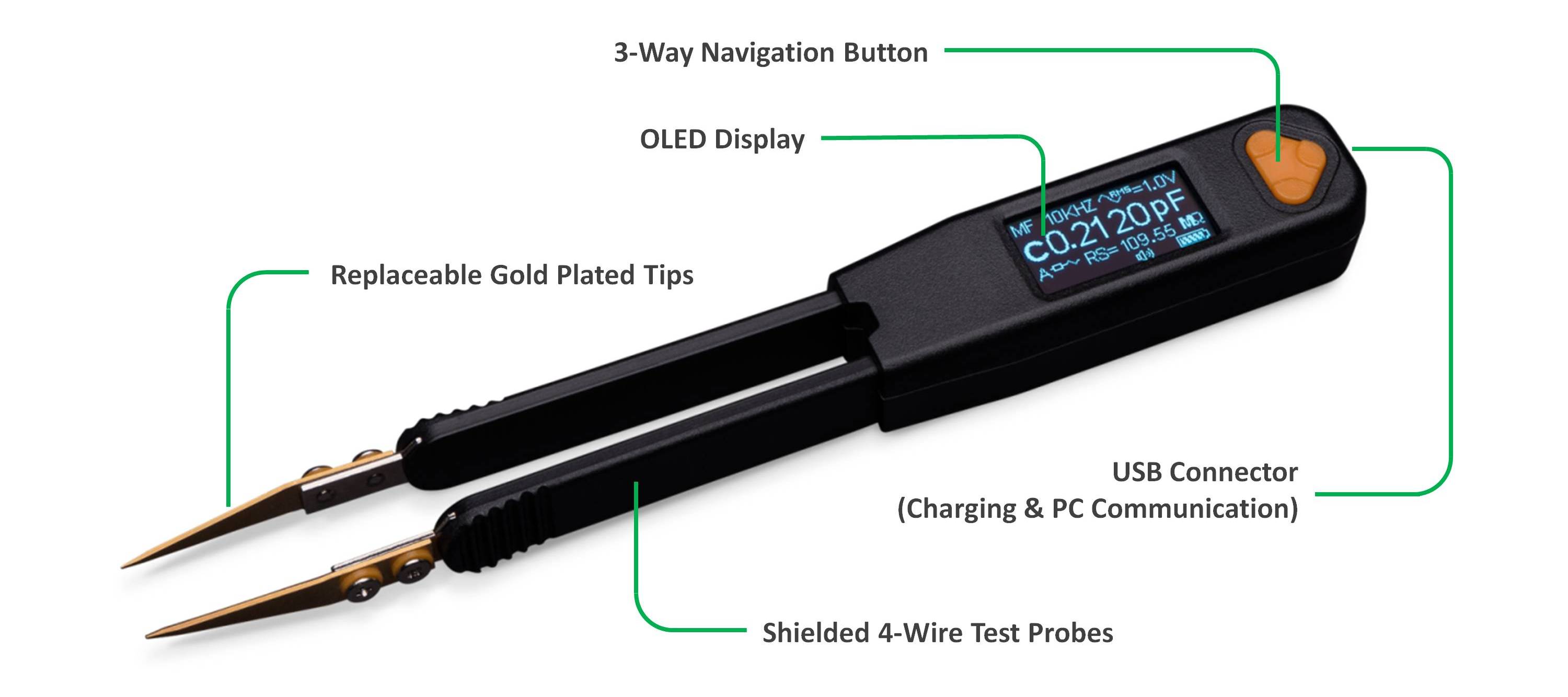

LCR Pro1 from LCRresearch.com integrates a pair of tweezers like probes and a LCR meter into a single compact, lightweight, battery powered device. It is an all-in-one portable device that provides a simple and efficient solution for not only measuring SMD components, but also making in-circuit debugging.

LCR Pro1 delivers high accuracy once found only in high-end desktop LCR meters. It provides basic accuracy 0.1% for resistance and 0.2% for capacitance and inductance with 5-digit resolution. Each device is fully calibrated during production and shipped with NIST (National Institute of Standards and Technology) traceable calibration certificate.

The test frequencies can be selected from 100Hz to 100kHz. 100kHz is ideal for measuring small inductance under 1uH. The test voltage can be selected from 0.2Vrms to 1.0Vrms. 1.0Vrms allows precision measurements of ceramic capacitors with high dielectric constant (K), such as  X5R type. 0.2Vrms is specially designed for in-circuit debugging because it is low enough to prevent the silicon chips from being active during measurement.

Features

  • Easy operation – one hand use, full set of shortcuts
  • Fully auto/manual selection
  • High accuracy – R: 0.1%, L: 0.2%, C: 0.2%
  • 5 test frequencies – 100Hz, 120Hz, 1kHz, 10kHz, 100kHz
  • 3 test voltages – 0.2Vrms, 0.5Vrms, 1.0Vrms
  • Wide measurement range – R: 20mΩ to 10MΩ, C: 0.1pF to 10mF, L: 10nH to 1H
  • Small size – 151 x 19 x 15mm
  • Large OLED display – 0.96″, 128 x 64 resolution
  • Ultra precise gold plated tips
  • Rechargeable LiPO battery with USB charging
  • PC remote control for data logging and programming
  • Multiple functions – R, L, C, Z, ESR, DCR, D, Q, θ, diode, sorting, recording and continuity

LCR Pro1 comes with a 0.96″ OLED display, doubling the size of its predecessor’s 0.91″ display. The pixels are doubled as well from 12832 to 12864. Larger font and more information can be displayed for you to read the results and navigate the menu more conveniently.

Overview Video

LCR Pro1 is an ideal device for many applications including components verification and sorting, production lines, laboratory and service center, in-field repair and more.

LCR Pro1 is available for purchase online from various distributors for $299.
