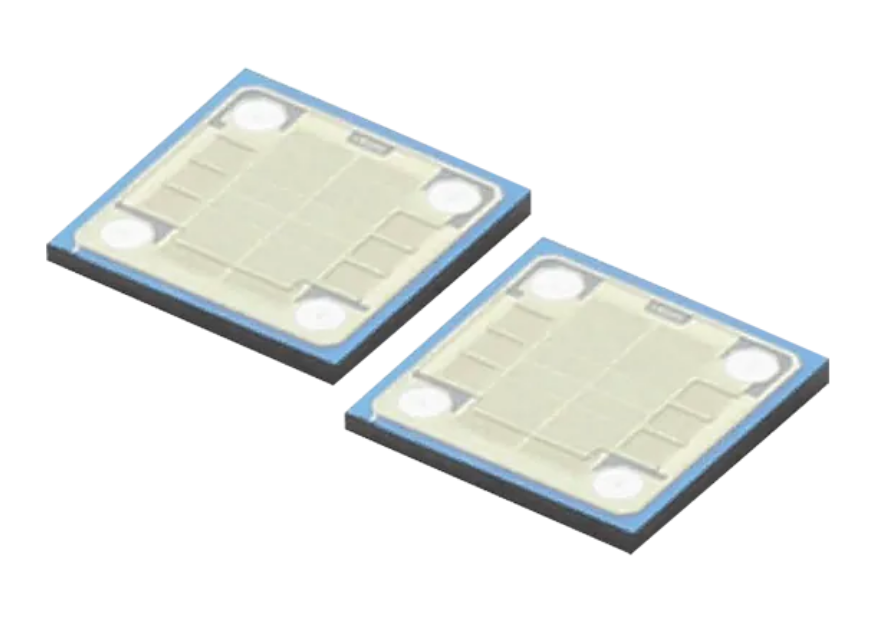

Murata BBEC Silicon Capacitor

Murata BBEC Silicon Capacitor offers ultra-broadband performance up to 40GHz in a 0201M package with a 0.60mm x 0.30mm (L x W) footprint. This capacitor is resonance-free, allowing ultra group delay variation. It provides high reliability and high stability of capacitance value over temperature, voltage, and aging. Other features include ultra-low insertion loss as well as low ESL and low ESR in bypass grounding mode. Murata BBEC Silicon Capacitor has a thickness of 100µm and is compatible with standard wire bonding assembly (ball and wedge) and embedding.

Features

  • Ultra-broadband performance up to 40GHz
  • Resonance free, allowing ultra group delay variation
  • Ultra-low insertion loss thanks to impedance matching in transmission mode
  • Low ESL and low ESR in bypass grounding mode
  • High stability of capacitance value over temperature, voltage, and aging
  • High reliability
  • Compatible with standard wire bonding assembly (ball and wedge) and embedding

Specifications

  • -55°C to +150°C operating temperature range
  • 0201M size code
  • 0.60mm x 0.30mm (L x W) footprint
  • 40GHz frequency
  • 11VDC withstanding voltage
  • 10nF capacitance
  • 100µm thickness

Murata ULEC Silicon Capacitor

Murata ULEC Silicon Capacitor features high-frequency performance up to 20GHz for broadband applications. This device comes in a 0201M package with a 0.60mm x 0.30mm (L x W) footprint. The ULEC series is resonance-free, allowing ultra group delay variation, and offers low ESL and low ESR in bypass grounding mode. Other features include ultra-low insertion loss, high reliability, and high stability of capacitance value over temperature, voltage, and aging. Murata ULEC Silicon Capacitor is compatible with standard wire bonding assembly (ball and wedge) and embedding.

Features

  • Ultra-broadband performance up to 20GHz
  • Resonance free, allowing ultra group delay variation
  • Ultra-low insertion loss thanks to impedance matching in transmission mode
  • Low ESL and low ESR in bypass grounding mode
  • High stability of capacitance value over temperature, voltage, and aging
  • High reliability
  • Compatible with standard wire bonding assembly (ball and wedge) and embedding

Specifications

  • -55°C to +150°C operating temperature range
  • 0201M size code
  • 0.60mm x 0.30mm (L x W) footprint
  • 20GHz frequency
  • 11VDC withstanding voltage
  • 10nF capacitance
  • 100µm thickness

more information: https://www.murata.com/en-eu/products/capacitor/siliconcapacitors/ubec_bbec_ulec
