New Diodes Target ESD Protection for Consumer Tech

The increasing speeds and data rates of modern consumer interfaces, such as USB-C, HDMI, and Thunderbolt, present a significant challenge for circuit protection engineers. As data lines become more sensitive to overvoltage events, the need for effective and unobtrusive electrostatic discharge (ESD) protection becomes paramount. TDK Electronics has addressed this need by expanding its portfolio of ultra-low clamping voltage Transient Voltage Suppression diodes, introducing three new models in the SD0201 series.

Diode Proximity as an Avenue for High Signal Quality

These new diodes are specifically engineered to safeguard high-speed data lines in devices like smartphones, laptops, and wearables. The key to their design is the balance between robust ESD protection and minimal impact on signal integrity. Housed in an extremely compact 0201 chip-scale package, measuring just 0.58 mm x 0.28 mm x 0.15 mm, the diodes offer a solution for designers working with space-constrained PCBs. The small footprint allows for placement close to the interface connector, minimizing trace length and parasitic effects, which is crucial for maintaining signal quality at gigabit speeds.

New TVS diodes from TDK provide ESD protection in a 0201 chip-scale package. Image used courtesy of TDK and Adobe Stock.

The technical specifications of the new diodes are tailored for sensitive digital interfaces. They provide bidirectional ESD protection for a single I/O line and are rated with an ESD discharge robustness of up to ±15 kV, a key metric for protecting circuits from human contact events. Additionally, they can handle a surge current up to 7 A. The devices are available with three different working voltages: ±1 V, ±2 V, and ±3.6 V, which allows engineers to select the most appropriate component based on the specific voltage levels of their data lines.

Symmetrical Diodes that Promote Data Integrity

From an electrical perspective, two features stand out as particularly important for high-speed applications. First, the diodes exhibit very low parasitic capacitance. High capacitance on a data line can act as a low-pass filter, degrading the signal’s high-frequency components and leading to data errors. By keeping capacitance to a minimum, these diodes ensure that the integrity of the high-speed data signal is preserved. Second, they have a very low dynamic resistance, as low as 0.16 Ω. Dynamic resistance is a measure of the diode’s resistance during a clamping event; a lower value means a more effective clamp, allowing the diode to respond quickly and shunt the transient energy to ground with a minimal voltage spike on the protected line.

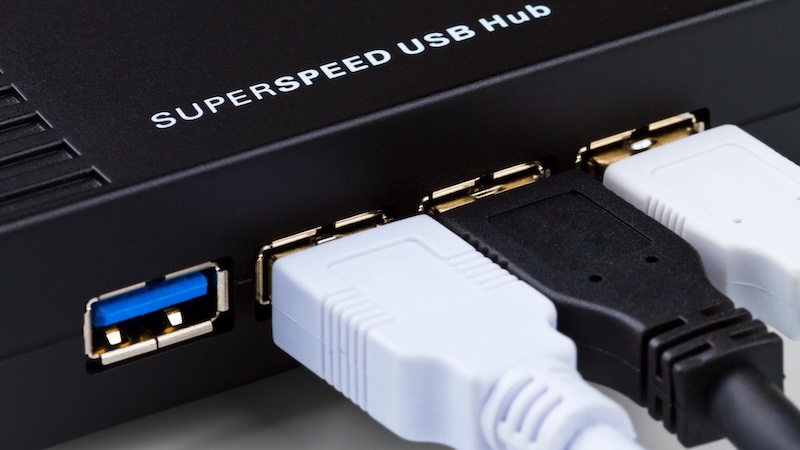

The SD0201 series offers solutions for a variety of consumer electronic interfaces, including USB-C, DisplayPort, HDMI, and Thunderbolt connections. Image used courtesy of Adobe Stock.

The symmetrical design of these TVS diodes also provides a practical benefit for PCB layout engineers. Symmetrical components simplify routing by allowing for flexible orientation on the board without impacting performance. To further assist with design and simulation, TDK has made an LTspice model library available for System-Efficient ESD Design simulations, enabling engineers to accurately model and verify the performance of the diodes within their circuit designs before committing to a physical prototype.

Summary

Overall, TDK’s expanded SD0201 series provides electrical engineers with a focused and technically sound solution for overvoltage protection on high-speed consumer interfaces. The combination of a small form factor, low clamping voltage, and minimal impact on signal integrity makes these new diodes a compelling choice for engineers designing the next generation of compact, high-performance electronic devices.
