KEMET’s analog gas sensors feature a fast and stable response over a wide operating frequency range

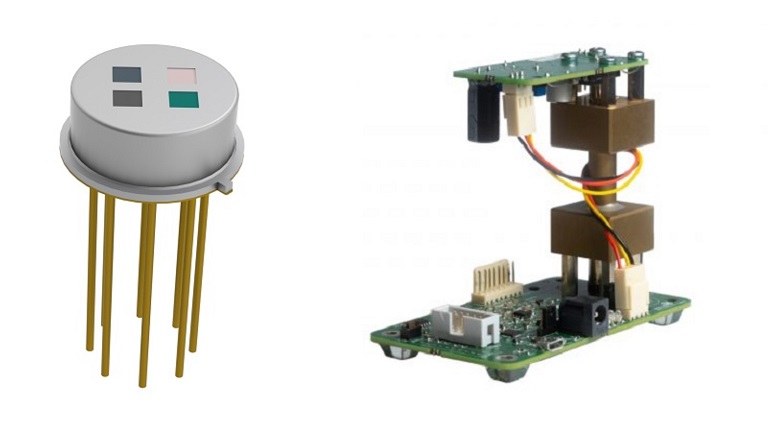

KEMET’s QGC thin film pyroelectric gas sensors can be reduced in physical size and still provide high sensitivity with fast frequency operation, enabling this highly stable one to four element sensor in a TO39 package. The sensor element is built into a low noise circuit that has an internal CMOS operational amplifier with a 10 GΩ feedback resistor outputting a voltage signal centered around half the supply rail.

The evaluation kit includes USEQGCDAC82L00 dual-channel CO2 sensor, IR emitter (with reflector and sapphire window), brass gas cell (5 cm), PCB with microcontroller and ADC, 9 V power supply, micro USB cable, and a software CD. The PCB enables adjustment of 2nd stage amplification, sampling, and filtering parameters, followed by analog-to-digital conversion with USB connection to a PC.

Features

  • Fast, stable response over a wide operating frequency range
  • 1, 2, or 4 sensor elements in one package
  • TO39 package
  • Analog output
  • Integrated op amp

Applications

  • Gas and gas flues
  • HVAC (refrigerant or CO2-driven ventilation system)
  • Industrial process and safety
  • Medical capnography and anesthesia
  • Handheld breath analysis and breath rate measurement
  • Breath actuated dispensers
  • Automotive cabin air quality
  • Exhaust (CO2 content)
  • Home and building technology
  • Environmental monitoring (ambient CO2 levels)
  • Pollution air quality in home, office, and car (excessive CO2 levels)

more information: https://content.kemet.com/datasheets/KEM_SE0213_QGC.pdf
