VU GPSDR: RK3399 Touchscreen SBC with GPS-Disciplined SDR
Rockchip RK3399-based touchscreen SBC paired with GPS-disciplined SDR using R860 and RTL2832U, covering 500 kHz–1.766 GHz with PPS-stabilized clocking.
VU GPSDR touchscreen SBC

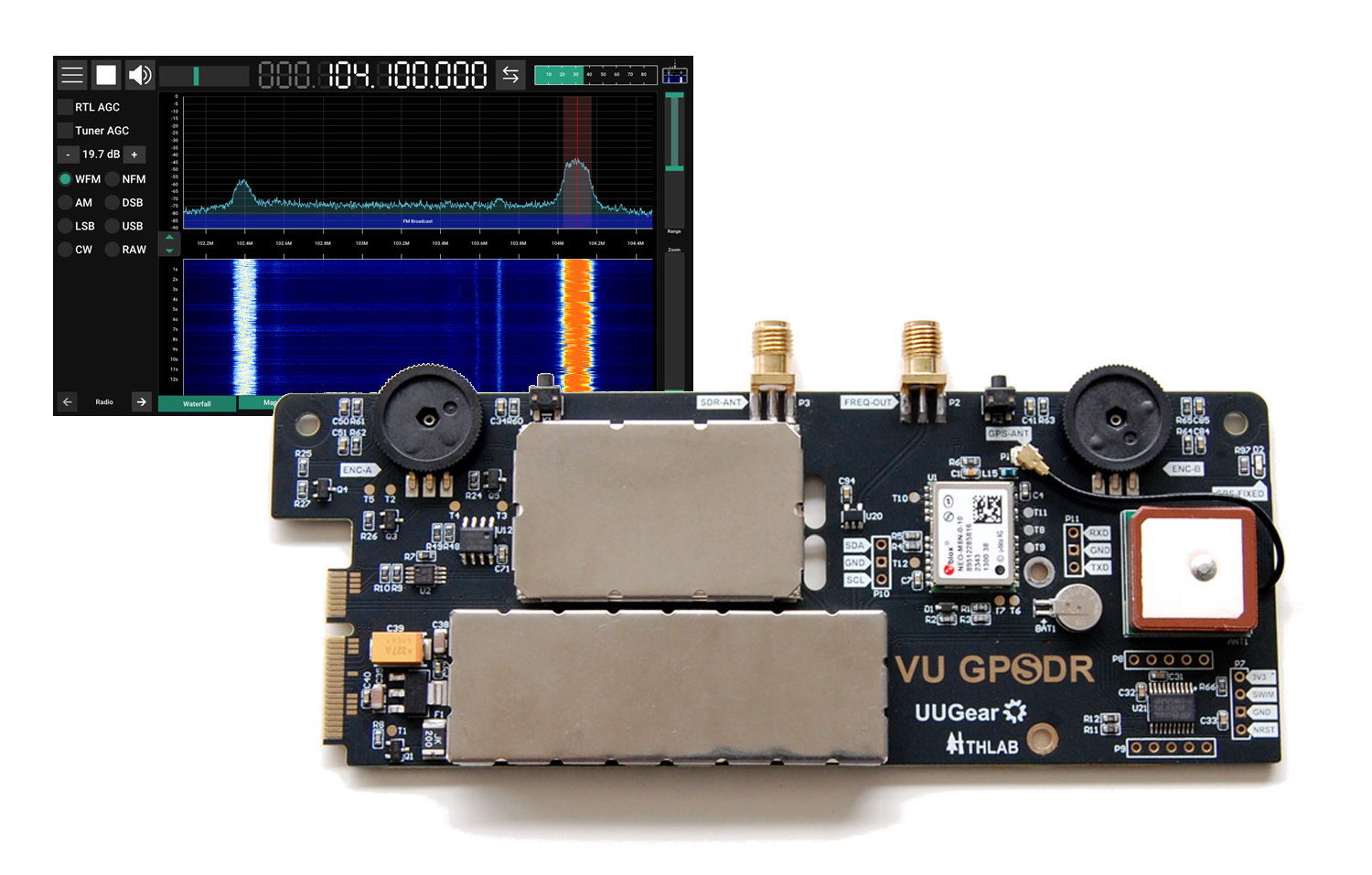

The Vivid Unit, a palm-sized Rockchip RK3399-based touchscreen SBC, is the prospective market for UUGear’s VU GPSDR, an inexpensive GPS-disciplined SDR expansion board. The Rafael Micro R860 tuner and RTL2832U ADC form the foundation of the VU GPSDR.
This module guarantees high frequency stability and timing accuracy with a high-precision 24 MHz PPS clock produced by the onboard u-blox NEO-M8N GPS module in reference to the Si5351 local oscillator. VU GPSDR becomes a fully functional, portable SDR system with a touchscreen when combined with Vivid Unit and Vivid Unit Extender. The RK3399 CPU, 4GB RAM, and 32GB eMMC storage are features of the Vivid Unit. With a 5.5-inch touch screen, speaker, microphone, Wi-Fi, Bluetooth, and multiple interfaces, this device is small enough to fit in a palm size.

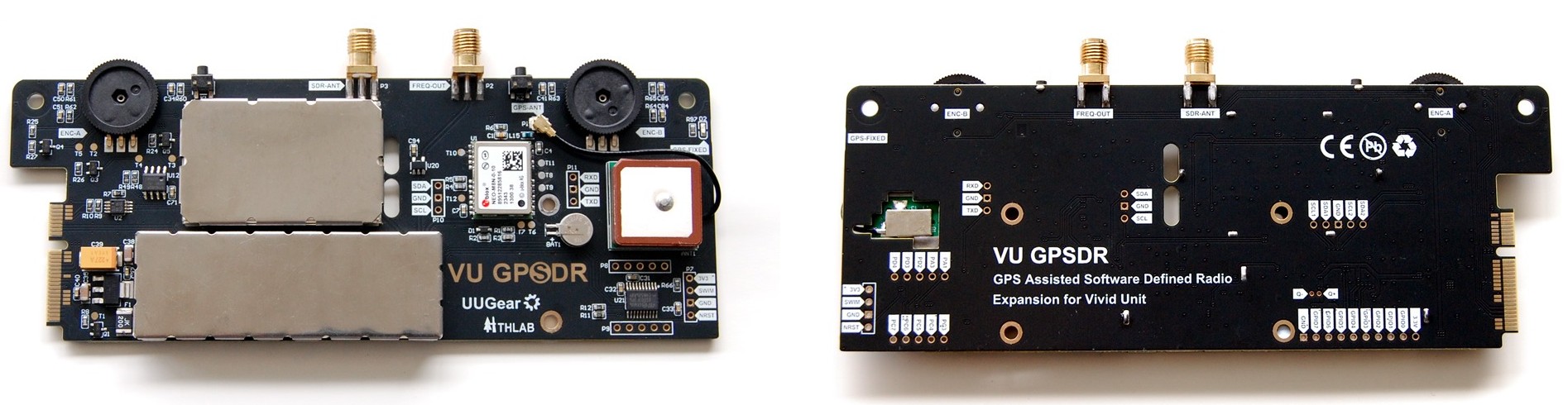

VU GPSDR touchscreen SBC Top and Bottom
VU GPSDR specifications:
- MCU: STM8S003F
- RF:
- Tuner: Rafael Micro R860
- ADC: Realtek RTL2832U
- Frequency Range: 500 kHz to 1.766 GHz
- Bandwidth: Up to 3.2 MHz (2.4 MHz recommended for stability)
- HF Up conversion: An integrated 108 MHz up-converter for amateur/shortwave bands that allow reception below 30 MHz
- Antenna:
- 1x SMA (SDR antenna input); no Bias-Tee
- 1x SMA Output (software-adjustable clock output via Si5351)
- Clocking:
- Local Oscillator: Si5351, disciplined by 24 MHz PPS from u-blox NEO-M8N GPS
- GPS-adjusted clock for long-term frequency accuracy
- 1x onboard GPS antenna connected via IPEX 1st gen connector with 5V Bias-Tee support
- I2C header for u-blox NEO-M8N GPS
- Misc:
- Dual rotary encoders
- 2x push buttons for controls
- GPS fix green LED
- SWD header for STM8 MCU
- Dimension: 210 × 110 × 10 mm
- Weight: 0.065 kg

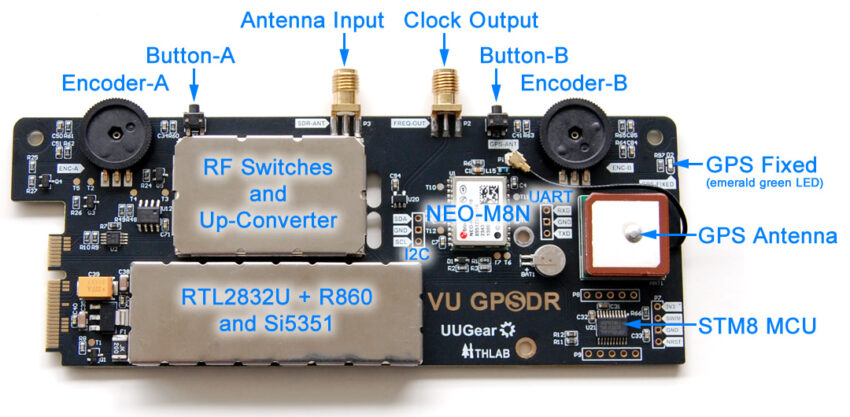

VU GPSDR Interfaces
GPSDR++, a fork of the open-source SDR++ (v1.2.0) project, is compatible with the VU GPSDR. The company advises turning on GPU acceleration for the Mali-T860 GPU to avoid lag because the RK3399 SoC of the Vivid Unit must manage real-time waterfall displays and demodulation. On the Debian-based OS of the Vivid Unit, installing the gpsdrpp binary and the Vue (Vivid Unit Extender) package is simple using apt.
On the UUGear E-Shop, the VU GPSDR expansion board costs €65.00, or roughly $77.40 USD. It is not a stand-alone device, though; users also need the Vivid Unit (€99.00) and the Vivid Unit Extender (€28.00). Without antennas, a full handheld system costs about €192 (about $205 USD). Additional information can be obtained from the news page.
