BreadBee Tiny Embedded Linux SBC is Based On MStar MSC313E Camera SoC

BreadBee Tiny Embedded Linux SBC is Based On MStar MSC313E Camera SoC

4.865
Views
0 Comments

We have many tiny and compact Arm Linux SBC on the market today, ranging from NanoPi NEO to Raspberry Pi Zero or Rock Pi S. However, Daniel Palmer is launching a crowdfunding campaign for the BreadBee, which is tiny, but yet fully-functional Linux-based single-board computer designed based on MStar MSC313E Cortex-A7 system-on-chip (SoC) originally aimed at IP cameras. Palmer say:

“The BreadBee is based on a relatively unknown IP camera SoC, the MSC313E, from a company called MStar.” He continues “You might have never heard of MStar but you probably have one of their chips in your TV. There are no solutions yet that can run a real OS like Linux that can be integrated by hobbyists into boards from cheap PCB vendors that don’t have show stopping limitations; i.e. the AllWinner V3s is very similar to the SoC used here but it only has one SPI controller that is lost as soon as you put SPI NOR on it… The MSC313E has just enough of the usual microcontroller peripherals to make it useful, comes in a (relatively) easy to work with QFN package, is tiny and costs ~$4. It is a bit harder to integrate into your designs than a microcontroller that requires a single power supply but all of the information you would need to do so is right here. The schematic for the BreadBee is incredibly simple.”

The Tiny BreadBee



At 32x30mm (around 1.26×1.18″) in footprint, which is smaller than any Arm Linux SBC on the market today, the compact BreadBee features a wide range of specifications. It includes a single-core 1GHz Arm Cortex-A7 with NEON instructions, 64MB of DDR2 memory, 64kB of static RAM, bootable and memory-mapped SPI-NOR, a 100Mb Ethernet port. It also includes 24-pin dual-row header (2.54mm pitch) with  SPI, I2C, 4x 10-bit ADC, 3x UART, GPIOs 21-pin header (1.27mm pitch) with SD/SDIO, USB 2.0, GPIOs, eight pulse-width modulated (PWM) pins, a real-time clock, watchdog timer, SD/SDIO interface, a USB PHY and host/device mux. The networking feature includes 10/100M Ethernet (RJ45).

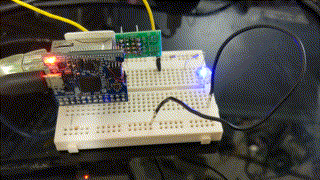

The BreadBee Blinking When Performing

Some of the MSC313E‘s hardware features are not quite ready for prime-time yet. However, hardware specifications available, but as-yet unsupported features of the SoC includes the camera interface and H.264 encoder for IP camera duties, an audio ADC and DAC, hardware cryptographic acceleration, and 8051 low-power-mode management microcontroller, (somewhat like an IR decoder that can wake the chip up based on the IR codes it sees), a command-queue direct memory access (DMA) controller, and finally an on-die temperature sensor. Even though the MStar MSC313E is a camera processor, the camera interface does not look exposed in the board, so it seems to be designed to control I/Os over Ethernet. WiFi is not available for now, however, there may be a future model that replaced the Ethernet jack with an Ampak WiFi module.

For more information on the BreadBee, and how to sign up to be alerted when the crowdfunding campaign goes live, you can visit Crowd Supply or the project’s GitHub repository. Pricing is yet to be confirmed, but Palmer is rooting for production costs of around $10 per unit in small quantities.
