ESP32-S3 1.47-Inch touch LCD development board with 2.4GHz and BLE 5

ESP32-S3-Touch-LCD-1.47 Display Development Board

The Waveshare ESP32-S3 1.47-inch Touch Display Development Board is a compact ESP32-S3-based development board with a built-in IPS touch screen, designed for IoT, HMI, and smart device applications. It combines wireless connectivity, graphics support, and various interfaces, making it suitable for prototyping wearables, handheld devices, and interactive control systems.

Built around the ESP32-S3R8 dual-core LX7 processor (up to 240MHz), the module features 16MB Flash, 8MB PSRAM, Wi-Fi (802.11 b/g/n), and Bluetooth 5 (LE) connectivity. It features a 1.47-inch capacitive touch IPS LCD (172×320, 262K colors), SPI display driver, and I2C touch controller, with support for GUI frameworks like LVGL. Additional hardware includes a MicroSD card slot, USB Type-C, reset/boot buttons, GPIO headers for peripheral expansion, onboard antenna, and low-power operation modes. Its combination of display, wireless, and storage makes it usable for AIoT, HMI panels, small-scale multimedia, and embedded control applications.

ESP32-S3-Touch-LCD-1.47 Specifications:

• SoC: Espressif ESP32-S3R8
  • CPU – Dual-core Tensilica LX7 microcontroller up to 240 MHz with vector instructions for AI acceleration
  • Memory – 8MB PSRAM
  • Wireless – WiFi 4 and Bluetooth 5.0 LE + Mesh connectivity
• Storage: 16MB SPI flash, MicroSD card socket
• Display: 1.47-inch IPS capacitive touch display
  • 172 × 320 resolution
  • 262K colors
  • Display driver: JD9853
  • Touch controller: AXS5106L (I²C)
• USB: USB Type-C port for power and programming
• Antenna: 3D antenna, IPEX antenna connector
• Expansion: 22-pin GPIO header with I²C, SPI, UART, etc
• Misc: BOOT and Reset buttons, battery switch
• Power Supply:
  • 5V via USB Type-C port
  • Low dropout regulator (ME6217C33M5G, 800 mA max)
• Dimensions: 56 x 44 x 13 mm

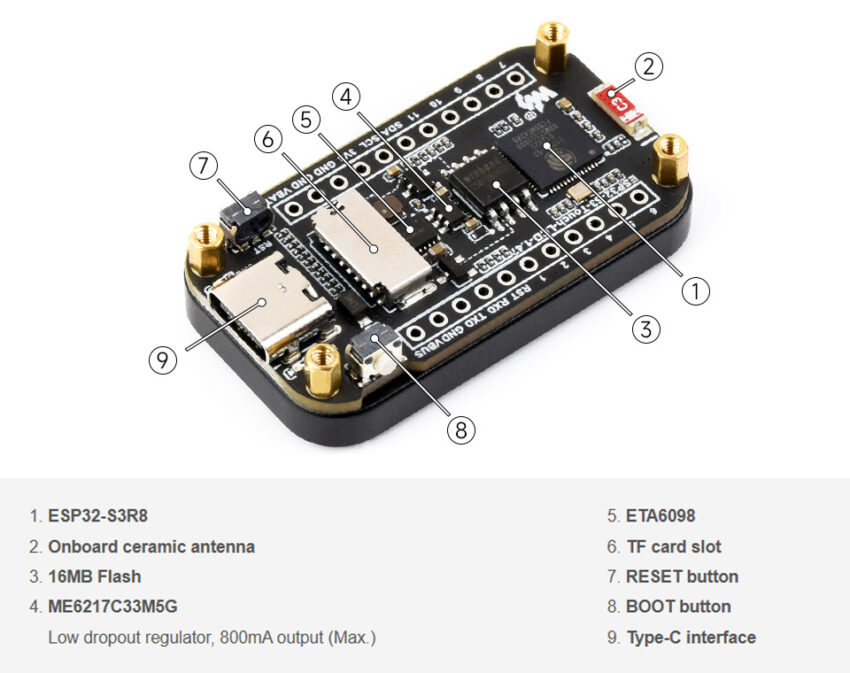

ESP32-S3 1.47-inch Touch Display Development Board Hardware Overview

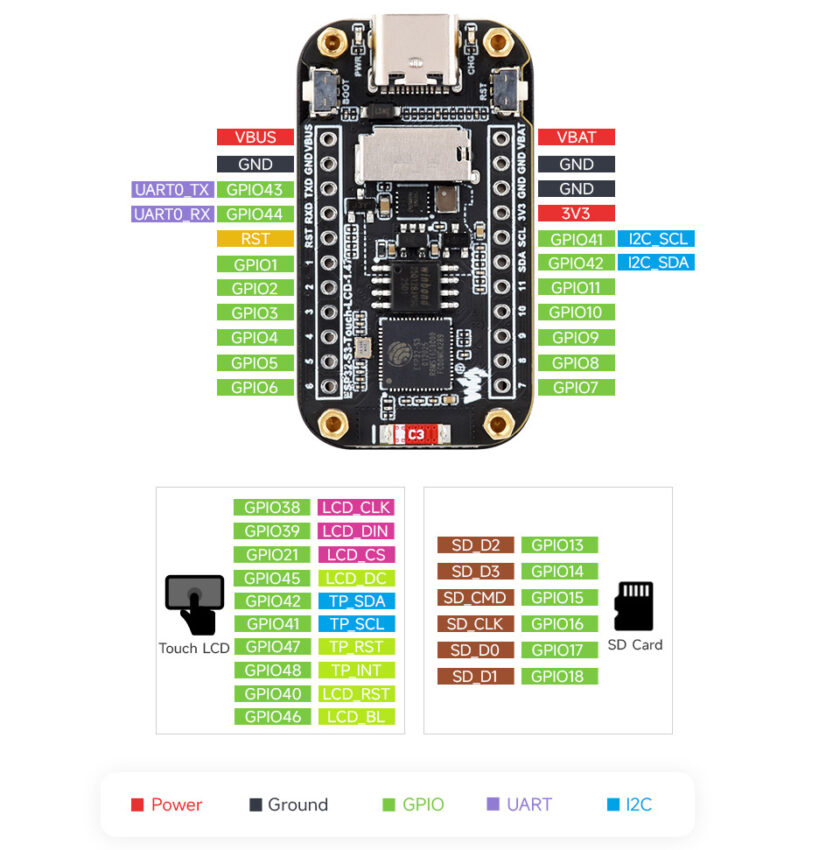

ESP32-S3 1.47-inch Touch Display Development Board Pinout

The ESP32-S3 1.47-inch display development board is compatible with both the Arduino IDE and ESP-IDF. It also supports the LVGL graphics library for GUI development, and WaveShare provides various libraries for e for display, touch, SD card, and image rendering. all available on the Waveshare wiki page.

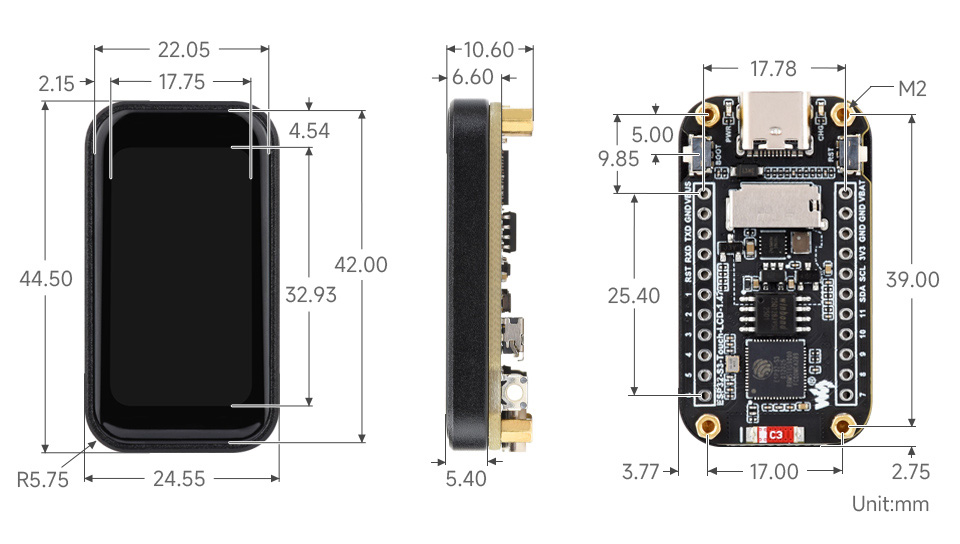

ESP32-S3 1.47-inch display development board dimensions

Previously, we have written about various other display development boards, including the LILYGO T-Display Bar, the ESP32-S3 7-inch Display Development Board, the Pimoroni Presto 4-inch wireless touch display, and others. Feel free to check those out if you are looking for something specific.

The ESP32-S3-Touch-LCD-1.47 display development board can be purchased from the waveshare store for  $15.99 with a soldered header.

Images used courtesy of Waveshare
