Move-X Cicerone LoRa®/GNSS Board

Move-X Cicerone LoRa®/GNSS Board

1.090
Views
2 Comments

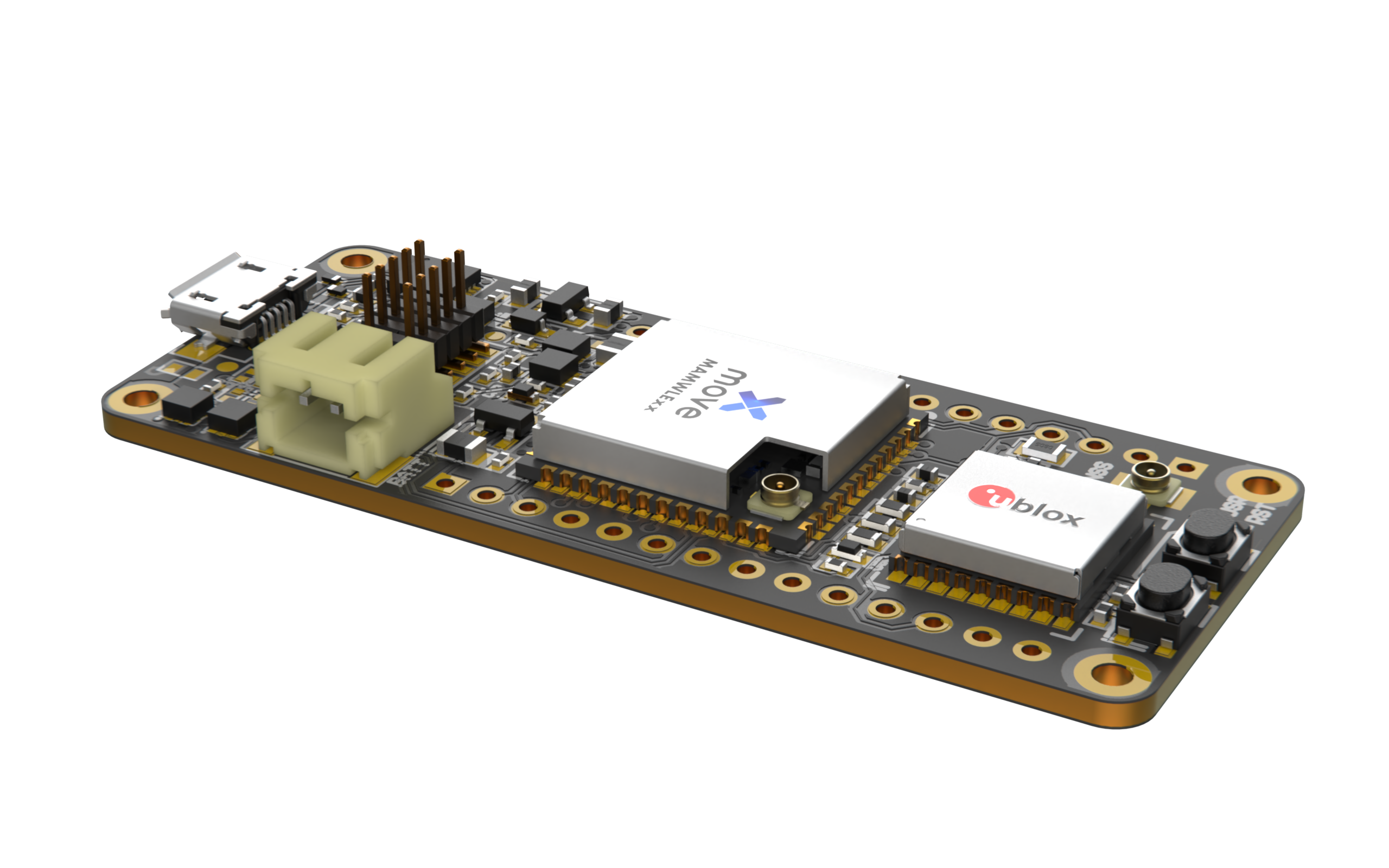

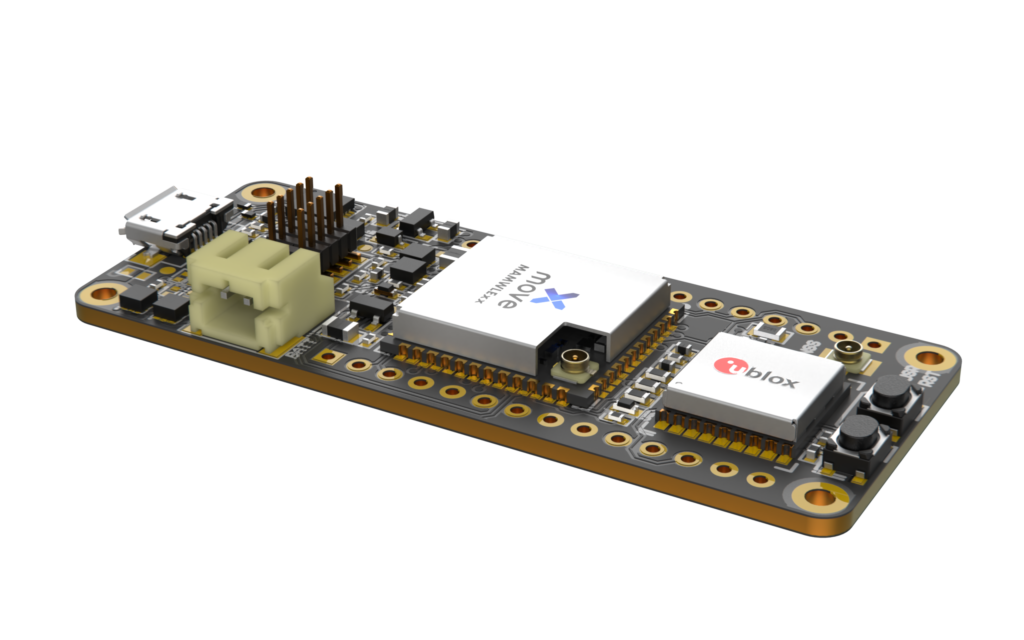

Move-X Cicerone LoRa®/GNSS Board is a high-performance, low-power, Arduino MKR-compatible development board based on the MAMWLE LoRa Module and the u-blox MAX-M10S GNSS Module. The Cicerone Board delivers best-in-class GNSS, long-range wireless connection, and high-performance MCU processing in a low-power solution for optimal battery life.

The Cicerone Board allows users to build tracking applications worldwide with meter-level accuracy and to communicate long-range, low-power data via LoRaWAN®. The integrated Li-Po charging circuit enables the Cicerone Board to manage battery charging through the USB port.

The Move-X Cicerone LoRa/GNSS Board features a compact 63mm x 25mm form factor and is compatible with all Arduino MKR Shield Boards. These boards all share a common pinout to enable developers to easily add expansions with minimal software changes.

Features

  • 63mm x 25mm PCB
  • 2x push buttons: Reset, User)
  • 2x LEDs: Battery charging status (Red), User (Green)
  • Headers compatible with Arduino MKR pinout
    • SWD signals for debugging
    • RESET, BOOT0
    • +3.3V output (LDO)
    • +5V input
    • +5V output (internally MUXed between USB and +5V input)
    • VREF output
    • GNSS module’s UART (allows firmware update)
    • MAMWLE SPI
    • I2C shared by LoRa and GNSS module
    • Up to 22 digital GPIO
    • Inputs for ADC
    • PWM outputs
  • Interfaces
    • USB micro for UART, RESET/BOOT0 driver, supply input, battery charge @200mA
    • Connector for single-cell 3.7V Li-Po battery (battery shall include protection circuitry against SC, OD, OC)
    • 10-pin JTAG/SWD Debug connector for ST-LINK
    • U.FL antenna connector for GNSS L1
    • U.FL antenna for LoRaWAN®
  • Key components
    • Move-X MAMWLE Low Power Radio Module
    • u-blox MAX-M10S GNSS Module
    • Microchip Technology MCP73831 Charge Management Controller
    • Silicon Labs CP2102N USBXpress™ USB-to-UART Bridge Controller

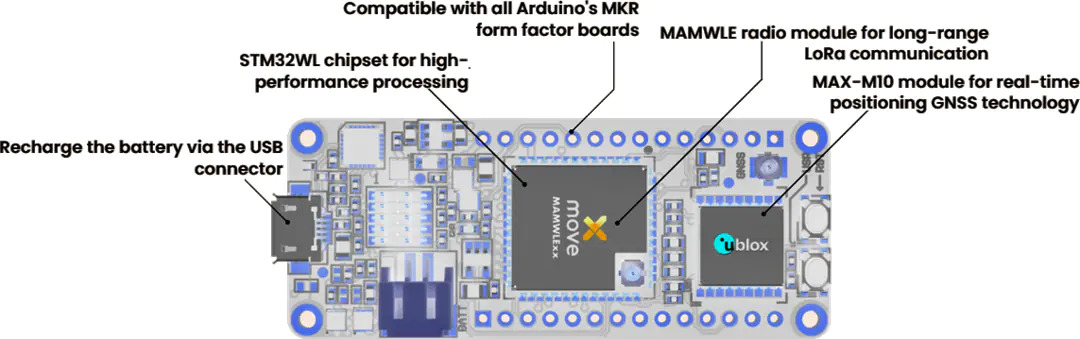

Board Layout

more information: https://www.move-x.it/cicerone-board/

About mixos

Mike is the founder and editor of Electronics-Lab.com, an electronics engineering community/news and project sharing platform. He studied Electronics and Physics and enjoys everything that has moving electrons and fun. His interests lying on solar cells, microcontrollers and switchmode power supplies. Feel free to reach him for feedback, random tips or just to say hello :-)

view all posts by admin
Subscribe
Notify of
guest

2 Comments
Inline Feedbacks
View all comments
David

Italian: Cicerone > English: Guide

David

“Connector for single-cell 3.7V Li-Po battery (battery shall include protection circuitry against SC, OD, OC)”

What? There’s a battery charge controller on-board yet they cheap-out and do not bother to include a cell protection IC? That’s terrible!

They should have put a nine-cent BRCL3130ME protection chip [1] on the board. Then any cell can be used with it, not just cells with built-in protection. The BRCL3130ME is like the ubiquitous DW01 protection chip [2] but with the two external MOSFETs built-in.

* References:

1. BRCL3130ME

https://lcsc.com/product-detail/Battery-Management-ICs_Foshan-Blue-Rocket-Elec-BRCL3130ME_C328560.html

2. DW01

https://lcsc.com/product-detail/Battery-Management-ICs_Guangdong-Hottech-DW01_C181096.html
