What do alarm systems, timers, smart keychains, and other notification systems have in common? They all need a buzzer, and consequently, a buzzer driver. The driver must satisfy specific criteria, such as delivering the requisite current and intensity, the possibility to add different patterns, and others.
The aforementioned audible systems are usually battery-operated, so there is a need to increase the voltage for reliable operation and great sound. This can be done with a voltage DC-DC boost converter. The boost converter driver provides the necessary voltage for system operation and also includes overcurrent and undervoltage protections.
The HVPAK SLG47105 is a flexible configurable mixed-signal IC that combines a Boost DC-DC Converter and a Piezo Driver in a single package with a few external components.The main goal of this publication is to show how to configure HVPAK to drive a 2.5 kHz Piezo and how to create a Boost DC-DC Converter from 3 V to 13 V. The whole circuit is powered with a 3V CR2032 battery. Such a schematic can be used in devices that require short-term notifications (keychains for finding things, and others). When the push button is pressed, the DC-DC Converter boosts the voltage to 13 V which powers the Piezo Driver. Then the short pattern is played, and the circuit goes to sleep mode until the button is pressed again. When the circuit is ON – it consumes nearly 15 mA, and in sleep mode less than 50 nA. This ensures up to 800 activations on one battery.
Operating Principle and GreenPAK Design
The DC-DC Boost & Buzzer Driver Circuit Diagram is shown in Figure 1.
The design consists of a DC-DC Boost Converter and Buzzer Driver parts.
For the DC-DC Boost Converter, the PWM0 forms the ~197 kHz signal. The DFF1, DFF5, and DFF6 form the clock for a soft start to reduce inrush current, which can occur when the device is first turned on. Minimum and maximum duty cycles are set by Pipe Delay and CNT4/DLY4.
The VDD and VDD2_B are connected to a 3 V battery. VDD2_A is connected to Boost output. To monitor this voltage, the resistors R2 and R4 form the resistive divider with a feedback signal, which goes to PIN20 (Analog Input). This feedback voltage is compared with 1024 mV Vref by ACMP1H forming the ACMP signal which goes to the CHOP input of the PWM Chopper 0. If the VDD2 exceeds 9.5 V, the ACMP signal is HIGH and chop the formed PWM signal. The PWM Chopper 0 output goes to HV OUT CTRL1 (Half Bridge) input IN0. Then PIN 9 drives an NFET of Boost Converter.
To reduce the current consumption, a resistive divider is connected to PIN 10 (Low Side ON) with a GND input.
Note: it’s possible to change the ACMP1H Vref and boost the voltage up to 13 V.
The HV OUT CTRL0 (Full Bridge) drives a Piezo. PWM1 is used as a frequency divider and forms a 2.5 kHz signal (resonant frequency of a piezo), this signal comes to PH input of HV OUT CTRL0.
The 3-bit LUT4 forms the EN signal for the HV OUT CTRL0. It consists of the sound pattern signal and the general EN signal. The PGEN generates the sound pattern (01010101101011). The EN signal – the general ENABLE signal for the whole design is HIGH for 875 ms (CNT3/DLY3 One Shot) if the button is pressed (MF1) and the VDD is higher than ~2.6 V (ACMP0H + MF0).
The 3-bit LUT9 inverts the EN signal forming the SLEEP signal to shut down the blocks when they are not used to reduce the power consumption.
The 3-bit LUT0 forms the BOOST_SLEEP signal. The Boost will power down if there is no POR signal, the SLEEP signal is HIGH, or the OCP signal is HIGH. The CCMP0 monitors the piezo current and if it exceeds 200 mA, the OCP signal is HIGH (MF2).
Design Testing
Channel 1 (blue / 1st line) – PIN 7 (Piezo).
Channel 2 (yellow / 2nd line) – GND (current).
Figure 3. PIN 7 Piezo Signal (blue) & Current Consumption (yellow)
As can be seen in Figure 3, the VDD2 level is 9.5 V as expected, and the Piezo frequency is 2.5 kHz. The average current consumption is 15 mA. The current in sleep mode is below 50 nA, which means up to 800 activations without replacing the battery!
PCB Design
The proposed Demo PCB Design is shown in Figure 4 (top) and Figure 5 (bottom). As can be seen in Figure 4, the design is so compact that it can be placed under the buzzer.
List of Materials Used to Manufacture a Boost & Buzzer Driver
Conclusion
This article outlines the configuration process for the HVPAK SLG47105 to establish a Boost & Buzzer Driver device compatible with a single 3V CR2032 battery. By its notably low current consumption, it can accommodate up to 800 activations without necessitating battery replacement.
The internal resources of the device offer considerable flexibility, facilitating seamless adaptation to the specific requirements of users.
CUI Devices’ Motion and Control Group today announced the introduction of a new model to its AMT incremental encoder family that supports smaller motor shaft sizes from 1 mm to 6.35 mm (1/4 inch). The AMT12 series, based on CUI Devices’ proprietary capacitive ASIC technology, brings the same high levels of durability, accuracy, and immunity to environmental particulates as current AMT encoder models in an even more compact 22.2 x 22.2 x 12.8 mm package. Thanks to its 16 programmable resolutions from 96 to 4096 PPR and low current consumption of 16 mA at 5 V, the AMT12 incremental encoder is ideally suited for a variety of robotics, industrial, and automation applications.
Available in radial or axial orientations, the AMT12 series carries a wide -40 to +125°C operating temperature range and single-ended quadrature A/B output channels. Its digital nature and compatibility with CUI Devices’ AMT Viewpoint™ software makes the AMT12 encoder highly customizable with the ability to easily configure the resolution and set the zero position.
Possible users: Robotics, industrial, automation applications
Primary features: Supports shaft sizes from 1 to 6.35 mm, compact 22 mm package
Cost: $21.66 per unit at 100 pieces through distribution
The AMT12-V kit affords users further flexibility in their design with the support of 8 different sleeve bore sizes from 1 mm to 6 mm and simple mounting tools to assist in the easy installation process onto a motor.
The AMT12 series is available immediately with prices starting at $21.66 per unit at 100 pieces through distribution. Please contact CUI Devices for OEM pricing.
For helpful resources and tools on encoders and motion control, check out our Resource Library which houses a range of blog posts, videos, and more. Or for specific questions on our AMT encoder line, search our AMT FAQ page.
Rohde & Schwarz has developed the R&S RT-ZISO isolated probing system, further elevating its cutting-edge oscilloscope portfolio. The new R&S RT-ZISO enables extremely accurate measurements of fast switching signals, especially in environments with high common-mode voltages and currents. Also new is the R&S RT-ZPMMCX passive probe with MMCX connector, which complements the isolated probe system perfectly for certain measurement tasks.
At the PCIM Europe International Exhibition and Conference in Nuremberg, Germany, Rohde & Schwarz is giving a sneak peek at its next generation R&S RT-ZISO isolated probing system. The R&S RT-ZISO will set new standards in isolated probe technology, delivering unprecedented accuracy, sensitivity, dynamic range, and bandwidth for next generation wide bandgap (WBG) power designs with SiC and GaN.
The R&S RT-ZISO provides precise differential measurements of up to ±3 kV on reference voltages of ±60 kV with a rise time of < 450 ps and suppresses fast common-mode signals that can distort and interfere with accurate measurements. Its power-over-fiber architecture galvanically isolates the device under test (DUT) from the measurement setup, providing a much higher common-mode rejection ratio (CMRR) than conventional differential probes. Its key features include bandwidth options of 100 MHz to 1 GHz (upgradeable), a CMRR of > 90 dB (> 30 000:1) at 1 GHz, an input and offset range of ±3 kV, a common mode range of ±60 kV, and a sensitive input range of ±10 mV.
The R&S RT-ZISO isolated probe is the perfect addition to the Rohde & Schwarz oscilloscope portfolio. With the instruments of the next generation MXO series (MXO 4, MXO 5, MXO 5C), the probe enables measurements with the world’s fastest acquisition in the time and spectrum domain, thanks to the oscilloscopes’ hardware-based acceleration. In combination with the R&S RTO6, design engineers can use the probe for complex analysis tasks that take advantage of the oscilloscope’s high performance and advanced measurement capabilities.
The R&S RT-ZISO is ideal for a wide range of applications, including switching analysis of power converters with WBG materials, double-pulse testing, floating measurements, shunt measurements, inverter design, and motor drive analysis. The isolated probing system comes with a range of probe tips for different measurement needs, including the micro-miniature coaxial (MMCX) connector, square pins, wide square pins and the isolated passive prober. All connectors are rated for CAT III voltages up to 1000 V. It is the first passive isolated prober on the market that allows users to quickly access the test point without designated connectors. In addition, the use of long bandable cables allows the tips to access the DUT at various angles with no additional mechanical stress.
R&S RT-ZPMMCX passive probe with MMCX connector
Along with the R&S RT-ZISO, Rohde & Schwarz is also presenting a new type of passive probe with MMCX connector. The R&S RT-ZPMMCX supports a bandwidth range of > 700 MHz with input voltages of ±60 V DC and 30 V (RMS), making it the ideal complement to the R&S RT-ZISO isolated probing system for low-side gate measurements. The MMCX probe has a very low capacitive load of < 4 pF, which helps to maintain the best signal integrity for preserving the switching waveform shape and timing.
The R&S RT-ZISO isolated probing system and the R&S RT-ZPMMCX passive probe are both available from Rohde & Schwarz. Visitors to the PCIM Europe International Exhibition and Conference, June 11 to 13, 2024, in Nuremberg, Germany, can experience them live at the company’s booth 619 in hall 7.

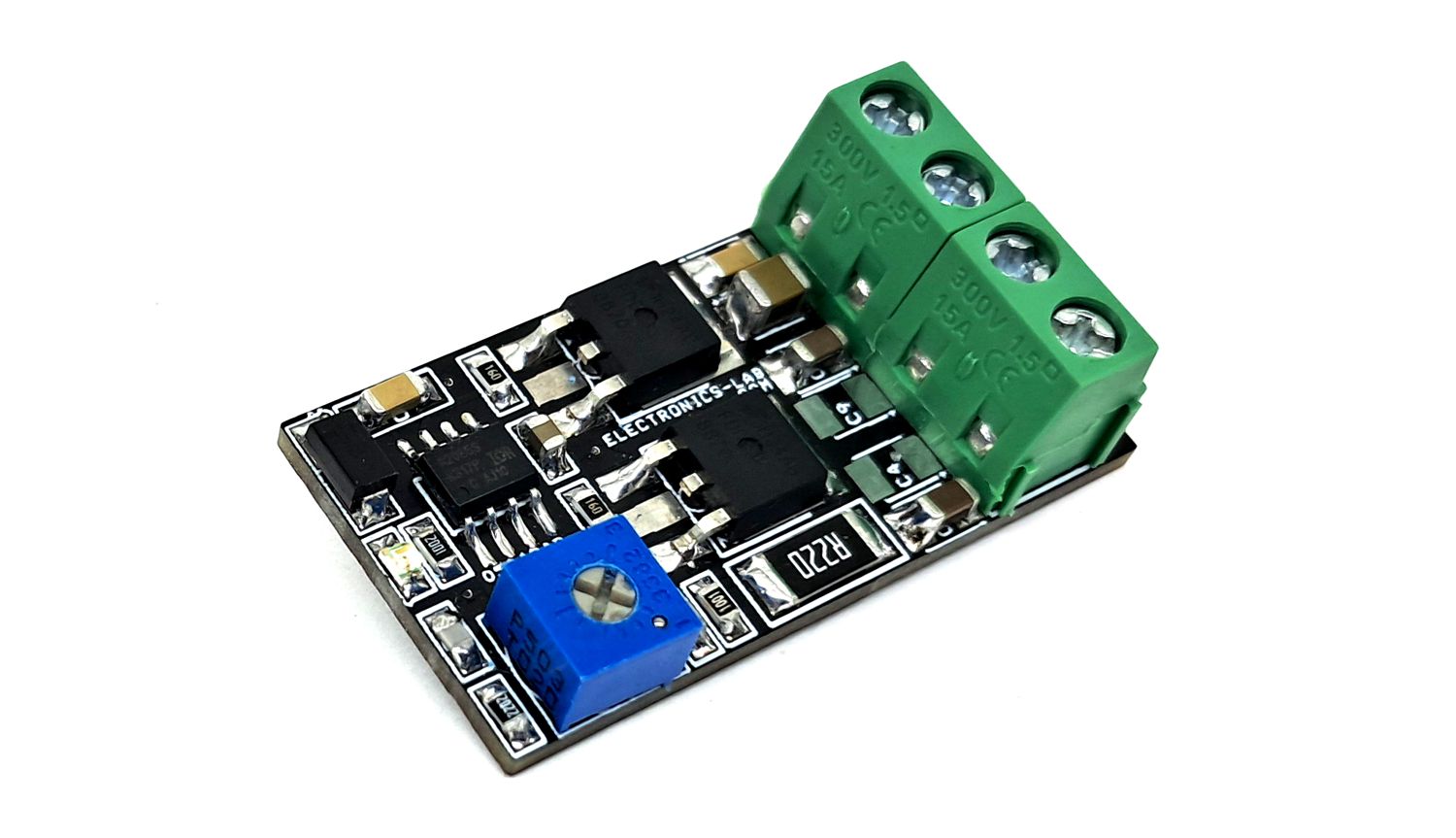

This is a Half-bridge module based on the LM5104 chip, which is a high-voltage gate driver. This High-Voltage Gate Driver is designed to drive both the high-side and the low-side N-channel MOSFETs in a synchronous buck configuration. The floating high-side driver can work with supply voltages up to 100V. The high-side and low-side gate drivers are controlled from a single PWM input. Each state change is controlled adaptively to prevent shoot-through issues. In addition to the adaptive transition timing, an additional delay time can be added, proportional to an external setting resistor. An integrated high-voltage diode is provided to charge the high-side gate drive bootstrap capacitor. A robust level shifter operates at high speed while consuming low power and providing clean level transitions from the control logic to the high-side gate driver. Undervoltage lockout is provided on both the low-side and the high-side power rails.
