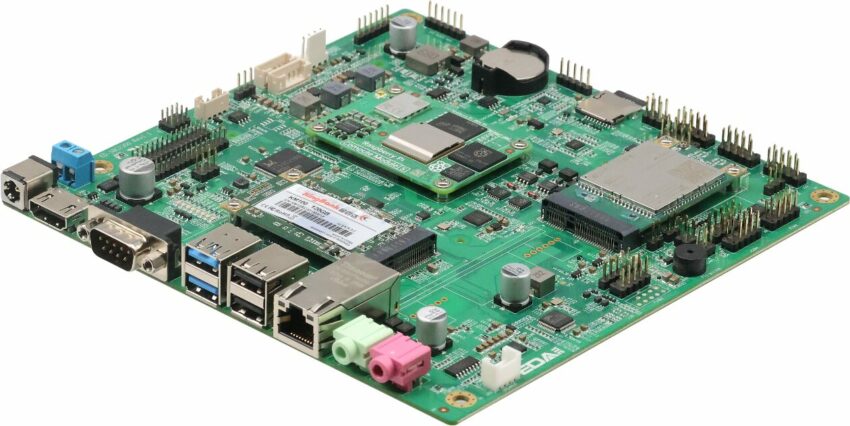

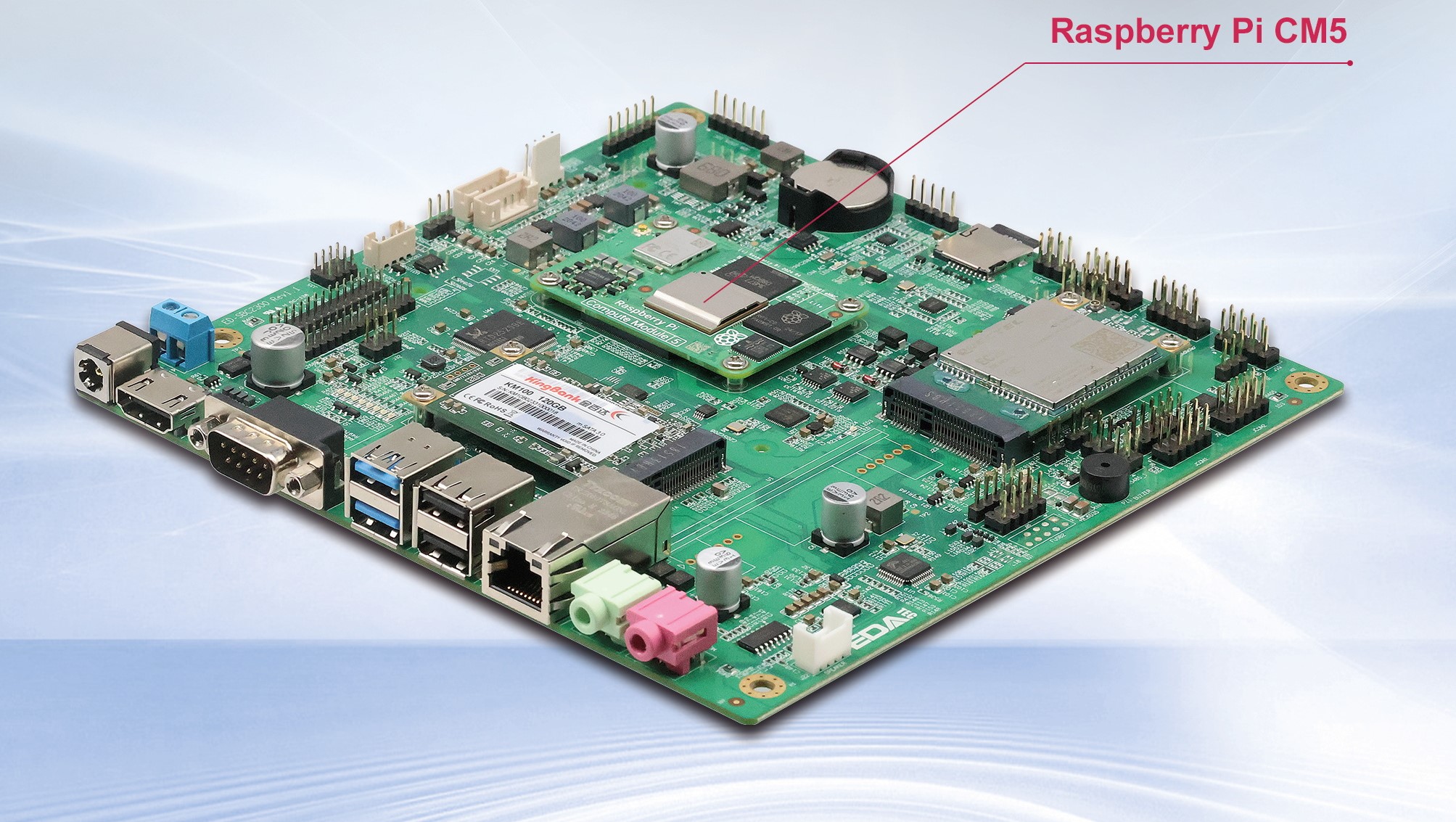

ED-SBC3300 Series Mini-ITX industrial SBCs Featuring Raspberry Pi CM5 and Broadcom BCM2712 SoC

The ED-SBC3300 series is a Mini-ITX industrial single-board computer (SBC) built around the Raspberry Pi CM5 module, featuring the Broadcom BCM2712 SoC. This quad-core Cortex-A76 (ARM v8) processor runs at 2.4GHz, offering support for OpenGL ES 3.1, Vulkan 1.2, and H.265 (HEVC) video decoding up to 4Kp60. Designed for industrial and embedded applications, the SBC combines reliable performance, multi-display support, and extensive connectivity options.

The board supports up to 8GB LPDDR4 SDRAM and eMMC storage options ranging from 16GB to 64GB, with additional expansion via Micro SD cards or optional mSATA SSDs. It provides dual-display capability through HDMI and LVDS interfaces, making it compatible with touchscreens. Connectivity features include a 1Gbps Ethernet port (with optional dual LAN), USB 3.0 and USB 2.0 ports, RS485 and RS232 serial interfaces, dual-band Wi-Fi, Bluetooth, and optional 4G LTE for enhanced versatility.

Engineered for industrial environments, the ED-SBC3300 series supports a wide voltage input range from 9V to 36V, along with PoE power supply options. Integrated features such as RTC, EEPROM, and cryptographic authentication add to its robustness. The series includes multiple variants (ED-SBC3310/3311/3320/3321) with flexible configurations of USB and Ethernet ports to suit specific use cases. With its compact Mini-ITX form factor, fanless design, and industrial-grade specifications, the ED-SBC3300 series is ideal for IoT, industrial automation, and other embedded system applications.

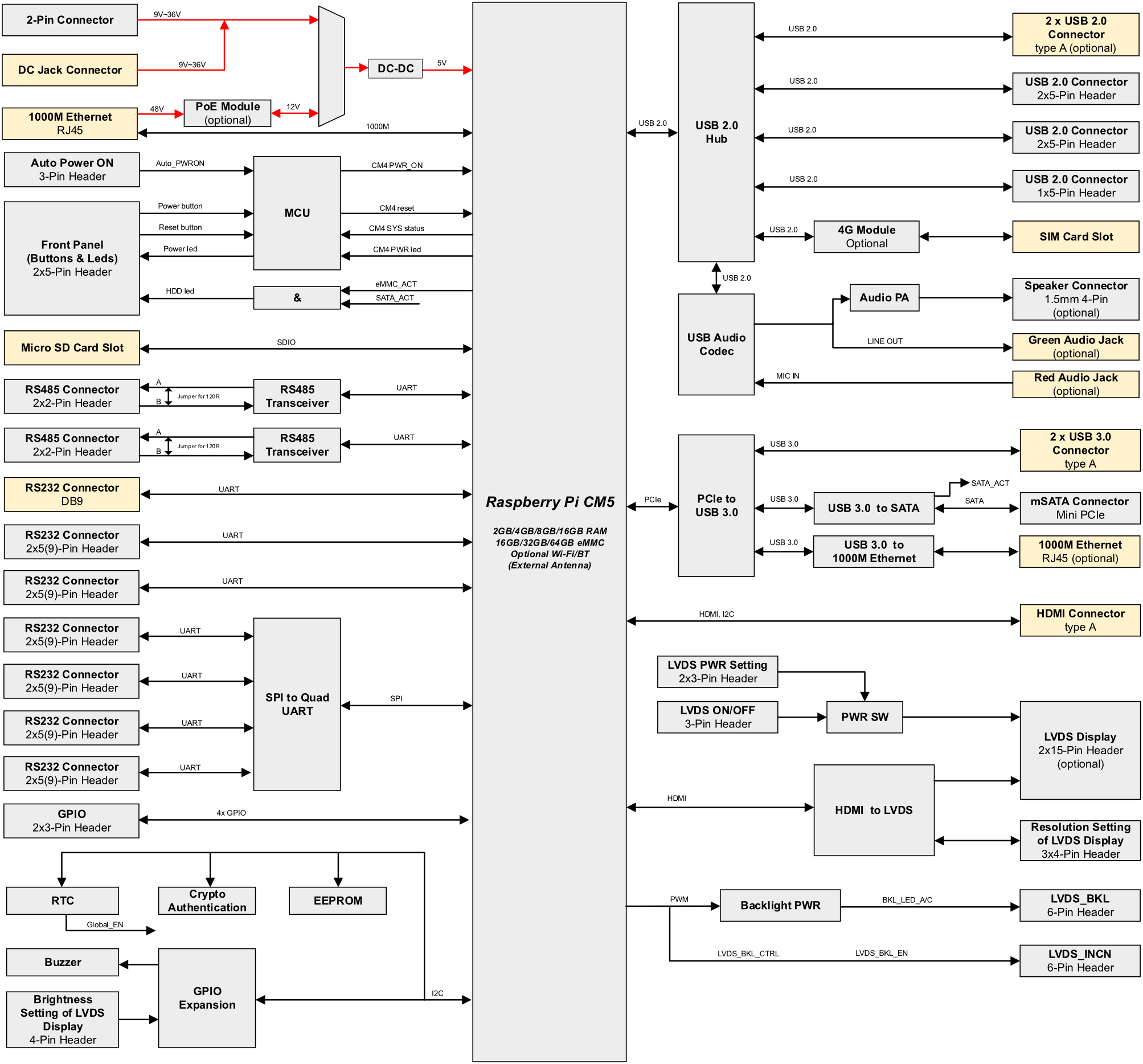

ED-SBC3300 industrial SBC Specifications:

• CPU: Broadcom BCM2712, quad-core Cortex-A76 (ARM v8) 64-bit SoC @ 2.4GHz
  • VPU: H.265 (HEVC), up to 4Kp60 decode
  • GPU: OpenGL ES 3.1 & Vulkan 1.2 support
• Memory: Options for 2GB, 4GB, 8GB LPDDR4-4267 SDRAM
• Storage:
  • Options for 16GB, 32GB, 64GB eMMC, plus MicroSD card expansion
  • Optional: mSATA SSD support
  • Storage Expansion:
    • 1x MicroSD slot
    • 1x Nano SIM card slot (for 4G connectivity)
    • 1x mSATA port (Mini PCIe)
• Video Output: 1x HDMI (supports 4K 60Hz)
• Serial Ports:
  • 1x RS232 (DB9, RX/TX/GND)
  • 2x RS485 expansion
• Wireless (optional):
  • Wi-Fi/Bluetooth (2.4GHz & 5GHz dual-band, Bluetooth 5.0)
  • 4G LTE connectivity (via Mini PCIe, various regional modules available)
  • GPS/GLONASS/BDS/Galileo/QZSS support (optional)
• USB Ports:
  • 2x USB 3.0 (up to 5Gbps)
  • 2x USB 2.0 or 1 x 1000M Ethernet (selectable)
  • Up to 5x USB 2.0 (on selected models)
• Ethernet: 1x 1000M Ethernet (adaptive 10/100/1000M)
• Audio I/O (optional):
  • LINE OUT (stereo audio, 3.5mm)
  • MIC IN (3.5mm input)
• Additional I/O:
  • 1x GPIO PIN header (expandable)
  • 6x RS232 expansion ports
  • 1x Front Panel connector (buttons/LED indicators)
  • 1x Auto-boot port
  • 1x LVDS Display (optional, up to 1080p 60Hz)
  • 1x LVDS Display Voltage Setting (optional)
  • 1x Backlight Power/Control (optional)
• Expansion:
  • EEPROM for enhanced device use
  • Crypto Authentication for added security
  • RTC (Real-Time Clock)
  • Buzzer for system notifications
• Electrical Characteristics:
  • Input voltage: 9V-36V DC input via DC jack (optional 2-pin Phoenix terminal)
  • Maximum power consumption: 60W
• Mechanical Characteristics:
  • Dimensions: 170mm x 170mm (Mini-ITX form factor)
  • Weight: 100g
• Environmental:
  • Operating temperature: -25°C ~ 50°C
  • Storage temperature: -25°C ~ 60°C
  • Humidity: 5% ~ 95% (non-condensing)

The system supports Raspberry Pi OS in Desktop and Lite versions, available in 32-bit and 64-bit distributions, offering flexibility for lightweight tasks or full desktop functionality. Hardware details and OS installation guidance are available on the documentation page, supporting various use cases like development, multimedia, and industrial applications.

We have previously covered several Mini-ITX SBCs, including the Radxa Orion O6, DFI RPS101/RPS103, Turing Pi 2.5, MI1001, ASUS N97T-IM-A, and more. Feel free to explore these products if you’re interested.

The ED-SBC3300 series consists of four models, each offering distinct configurations. The ED-SBC3310 includes 1 x 1000M Ethernet, 2 x USB 2.0, and 2 x USB 3.0 ports, while the ED-SBC3311 provides 2 x 1000M Ethernet and 2 x USB 3.0 ports. The ED-SBC3320 adds features such as 1 x 1000M Ethernet, 2 x USB 2.0, 2 x USB 3.0, an LVDS display port, audio output, and speaker connectivity. Similarly, the ED-SBC3321 offers 2 x 1000M Ethernet, 2 x USB 3.0, an LVDS display port, audio output, and speaker support. Pricing details remain undisclosed at the time of writing. For additional information, visit the product page or refer to the order information section above.
