Raspberry Pi RP2350-based W6300-EVB-Pico2 Ethernet board supoprts 80+ Mbps data rates thanks to WIZnet W6300 QSPI Ethernet

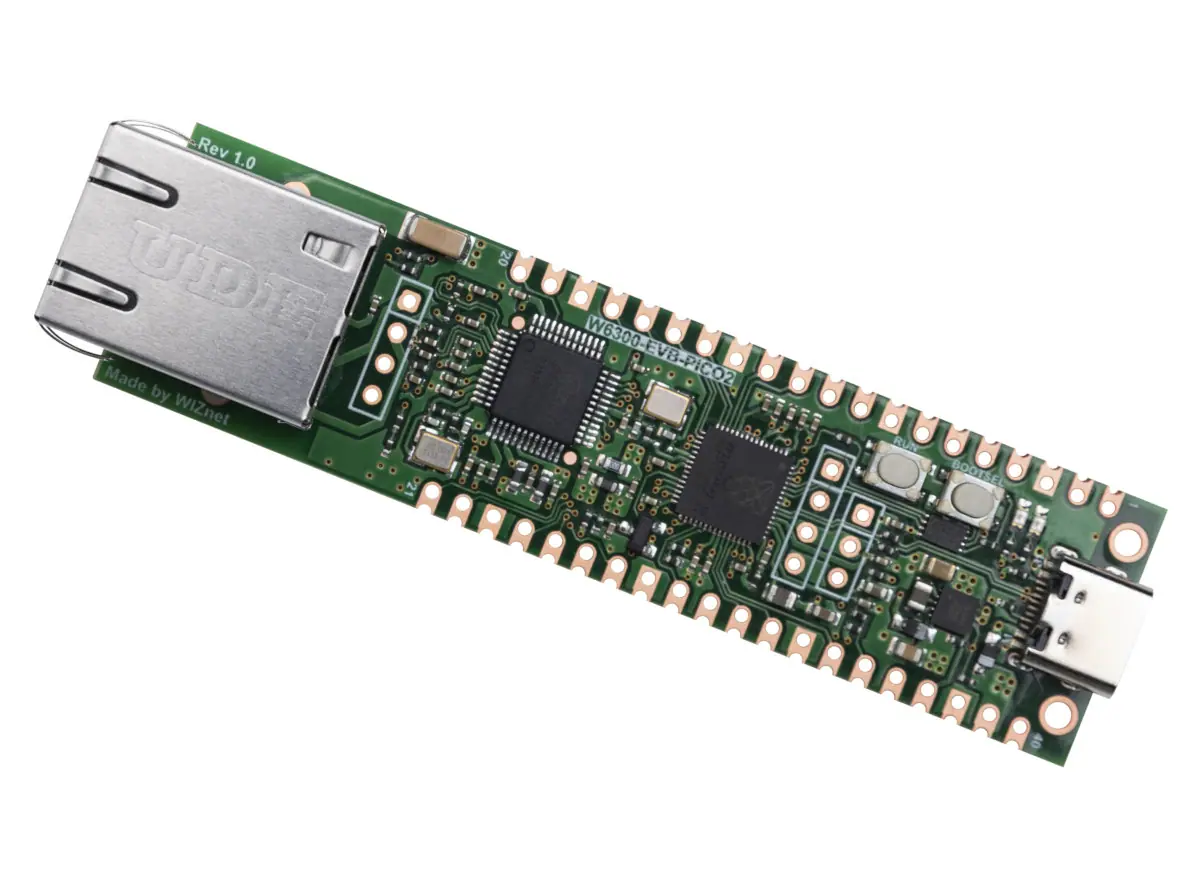

WIZnet has recently introduced the W6300-EVB-Pico2, a Raspberry Pi RP2350-based Ethernet board featuring the new W6300 QSPI Ethernet controller, designed to achieve Ethernet data rates exceeding 80 Mbps. Designed for applications that need higher-speed wired Ethernet connectivity with low MCU overhead. This can now be achieved thanks to its built-in TCP/IP Offload Engine (TOE).

The most interesting features include a high-speed QSPI interface, 10/100 Mbps Ethernet support with integrated PHY, 64KB total SRAM for 8 independent sockets, dual-stack IPv4/IPv6, Wake-on-LAN support, low power modes, and secure boot with Arm TrustZone. The board features 520KB internal RAM, 16 Mbit SPI flash storage, a USB Type-C port for power and data, UART, SPI, I2C, PWM, ADCs, and PIO blocks, and supports a wide temperature range of -20°C to +85°C, with CE/FCC certifications. Its applications include IoT devices, industrial controllers, networked sensors, and embedded systems needing reliable Ethernet networking with minimal processing burden on the microcontroller.

WIZnet W6300-EVB-Pico2 Ethernet board Specifications

• Main MCU: W6100/W6300 Ethernet chip with integrated hardware TCP/IP stack, supporting 8 simultaneous sockets
• Secondary MCU: RP2040 dual-core Arm Cortex-M0+ microcontroller @ 133 MHz with 264KB SRAM and 2MB Flash
• Storage: 16Mbite QSPI NOR Flash memory
• Networking:
  • 10/100 Mbps Ethernet via QSPI interface
  • IPv4/IPv6 dual stack
  • Hardware-accelerated TCP, UDP, ICMP, IPv6, SSL, MQTT, and HTTP(S) protocols
  • 8 independent hardware sockets
• Security:
  • Arm TrustZone-enabled architecture for secure execution
  • Hardware-based IP filtering and SSL security
• USB: USB C-Type port for power, data, and programming
• Interfaces:
  • 1x USB 1.1 device (micro-USB)
  • 1x UART
  • 1x SPI
  • 1x I2C
  • 1x ADC
  • 1x PWM
• Debugging: SWD (Serial Wire Debug) interface
• Expansion: 2x 20-pin headers (compatible with Raspberry Pi Pico form factor)
• Power Supply: 5V via micro-USB connector
• Operating Voltage: 3.3V for I/Os
• Operating Temperature: -20°C to 85°C
• Dimensions: 80 x 20mm

The documentation for the RP2350-based Ethernet board is still in progress. And at the time of writing, there’s no sample code yet, but WIZnet usually provides C examples, and Arduino libraries often follow later.

WIZnet recently announced the W6300 chip on X, so it should be available soon. The W6300-EVB-Pico2 board will likely launch shortly after. While not listed yet, both the chip and board should eventually appear on WIZnet’s online store.

More details are available on the product pages.
