Waveshare PoE HAT (H) for Raspberry Pi 5 with Onboard PoE Controller IC and Isolated SMPS

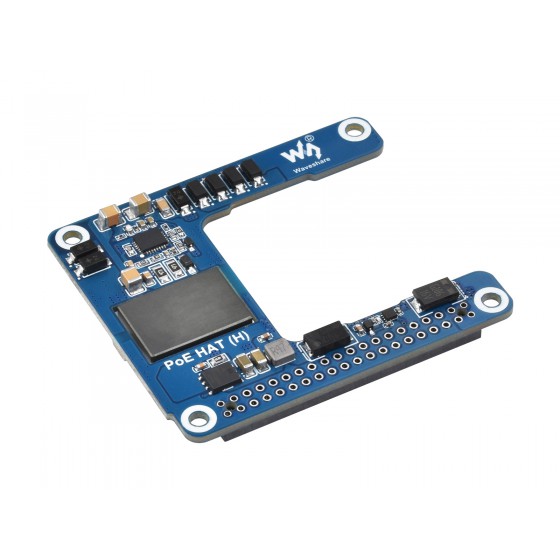

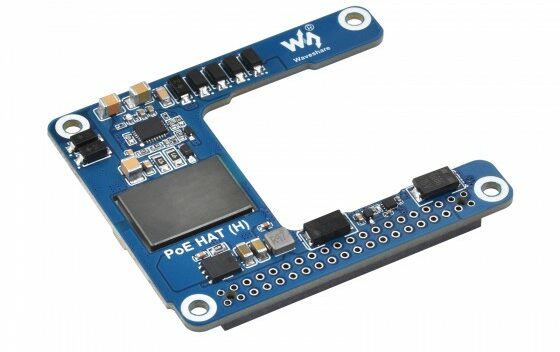

The PoE HAT (H) is a compact power over Ethernet solution for the Raspberry Pi 5 and Compute Module 5, which is fully compliant with the IEEE 802.3af/at standards. When connected to a PoE-enabled switch or router, it enables both power and network connectivity through a single Ethernet cable, eliminating the need for a separate power adapter and simplifying your setup.

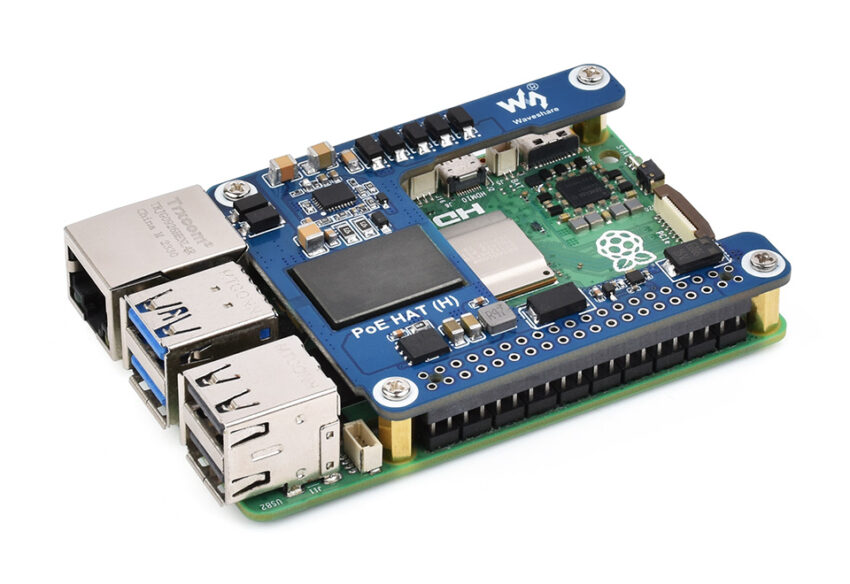

Designed for reliable and efficient operation, the HAT features a 40-pin GPIO passthrough header, a dedicated onboard IC for stable power delivery, and an isolated switched-mode power supply (SMPS) for enhanced safety and performance. Its slim form factor makes it ideal for embedded systems, industrial use, and compact enclosures.

Waveshare PoE HAT (H) Specifications:

• Compatibility:
  • Designed for Raspberry Pi 5 and Compute Module 5
  • Compatible with the official Raspberry Pi 5 active cooler
• Networking:
  • Supports IEEE 802.3af/at PoE standards
  • Energy Efficient Ethernet (EEE) up to 802.3af/at
• Expansion and Power Delivery:
  • 40-pin GPIO passthrough header
  • PoE power input: 37V to 57V DC
  • Output: 5V @ up to 5A via GPIO header
  • Isolated switched-mode power supply (SMPS) for safe and efficient operation
  • Onboard dedicated IC for stable PoE performance
• Cooling:
  • Integrated cooling fan
  • Fan speed up to 8000 RPM (±15%)
  • Max airflow: 2.79 CFM
• Dimensions: 65 x 56.5 x 9.81 mm

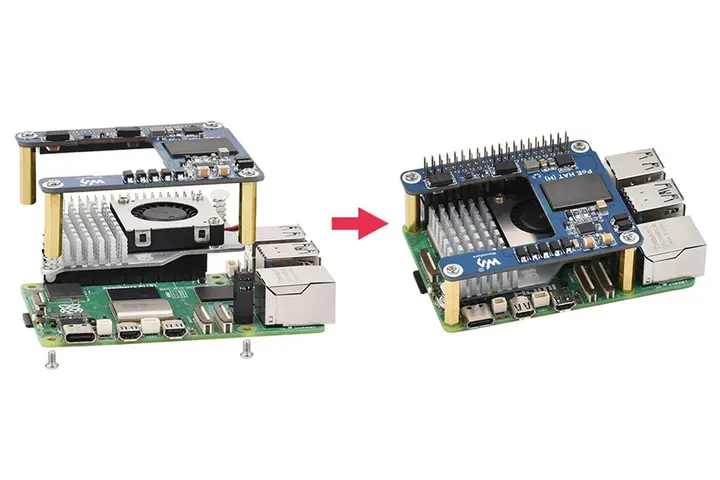

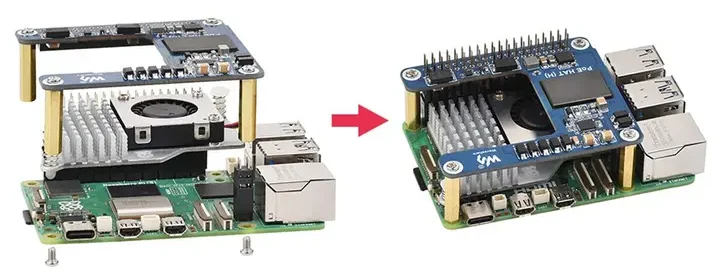

To install the Waveshare PoE HAT (H) on your Raspberry Pi 5, begin by installing the standoffs that come with it onto the Pi. Position the HAT over the 40-pin GPIO header and press it gently into position, then fasten it with the screws that come with it.

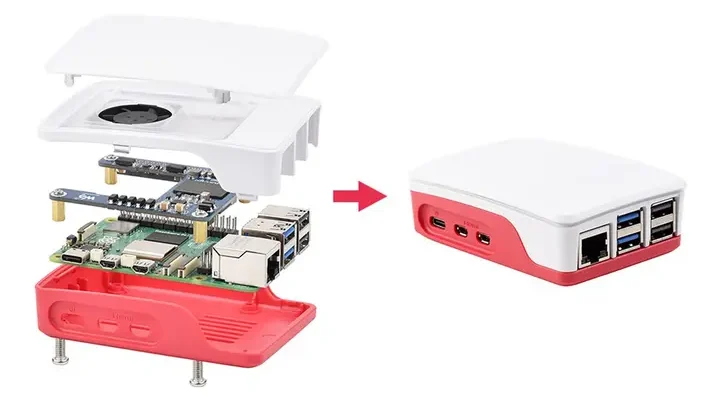

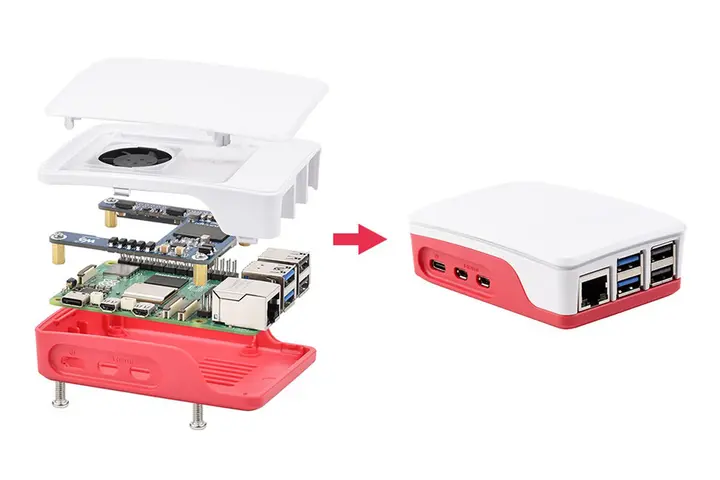

Finally, plug in the Raspberry Pi into the red half of the official case, ensuring that all the ports are correctly aligned with the holes. Attach the thermal pad on top of the SoC for better heat dissipation, followed by snapping the top cover onto the case with the integrated fan mount.

Once installed, plug in a PoE-enabled Ethernet cable to provide both power and network connection over one cable.

Previously, we covered several Raspberry Pi HATs, including the Seeed Studio PCIe 3.0 to Dual M.2 HAT+, HiFi-Amped Audio HAT, and Pineboards HatDrive! PoE+ and the official Raspberry Pi M.2 HAT+. Feel free to check them out if you’re interested in these add-ons.

The Waveshare PoE HAT (H) for Raspberry Pi 5 is available for purchase on Amazon for $30.71, on AliExpress for $36.90, and on the official Waveshare store priced between $21.99 and $29.99.
