This project contains the design files for an eDP adapter and backlight driver for ipad 3 retina displays. A .brd file for a connector for CN31 is included too which can be manufactured by OSH Park flex service and costs next to nothing.

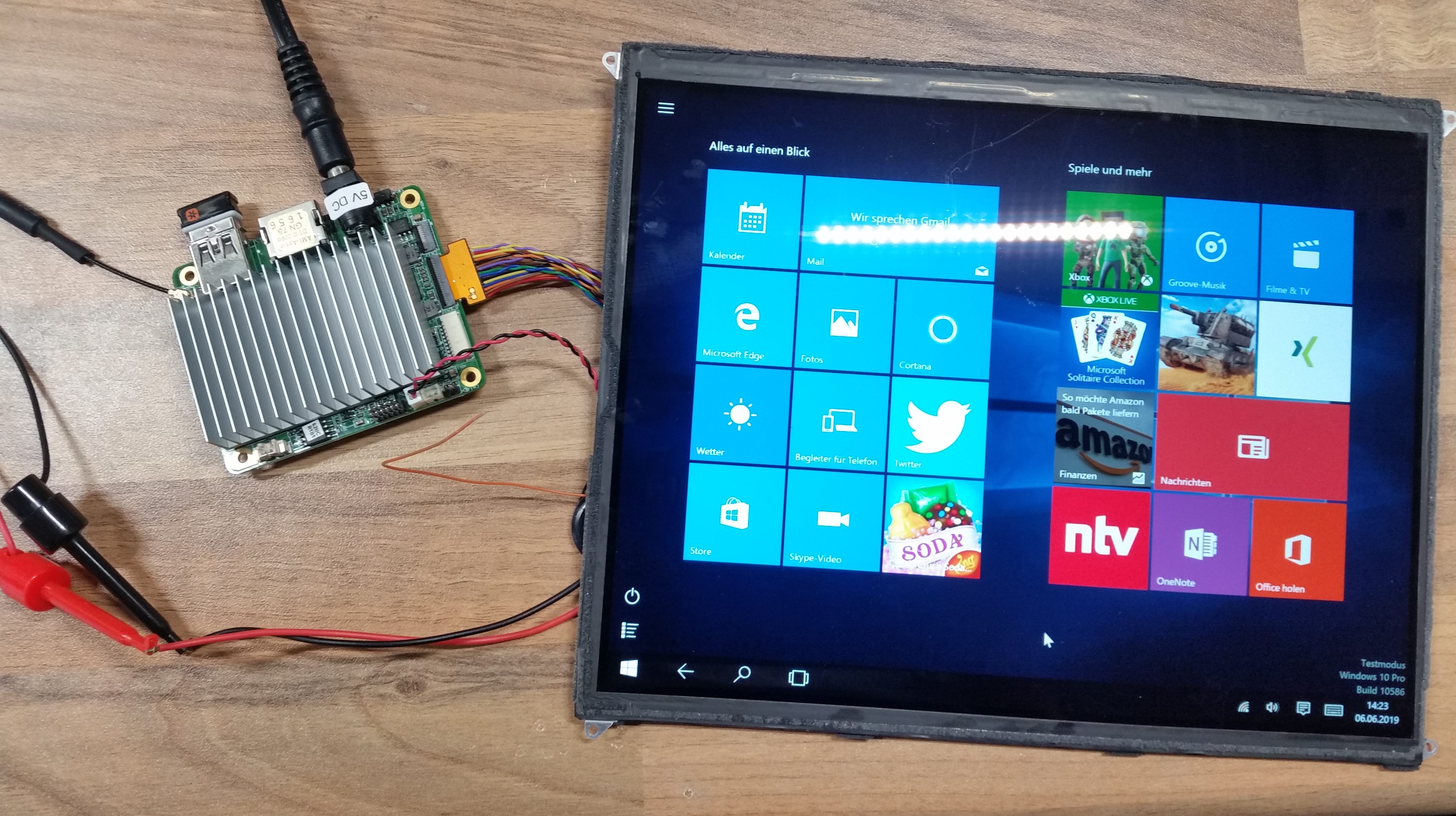

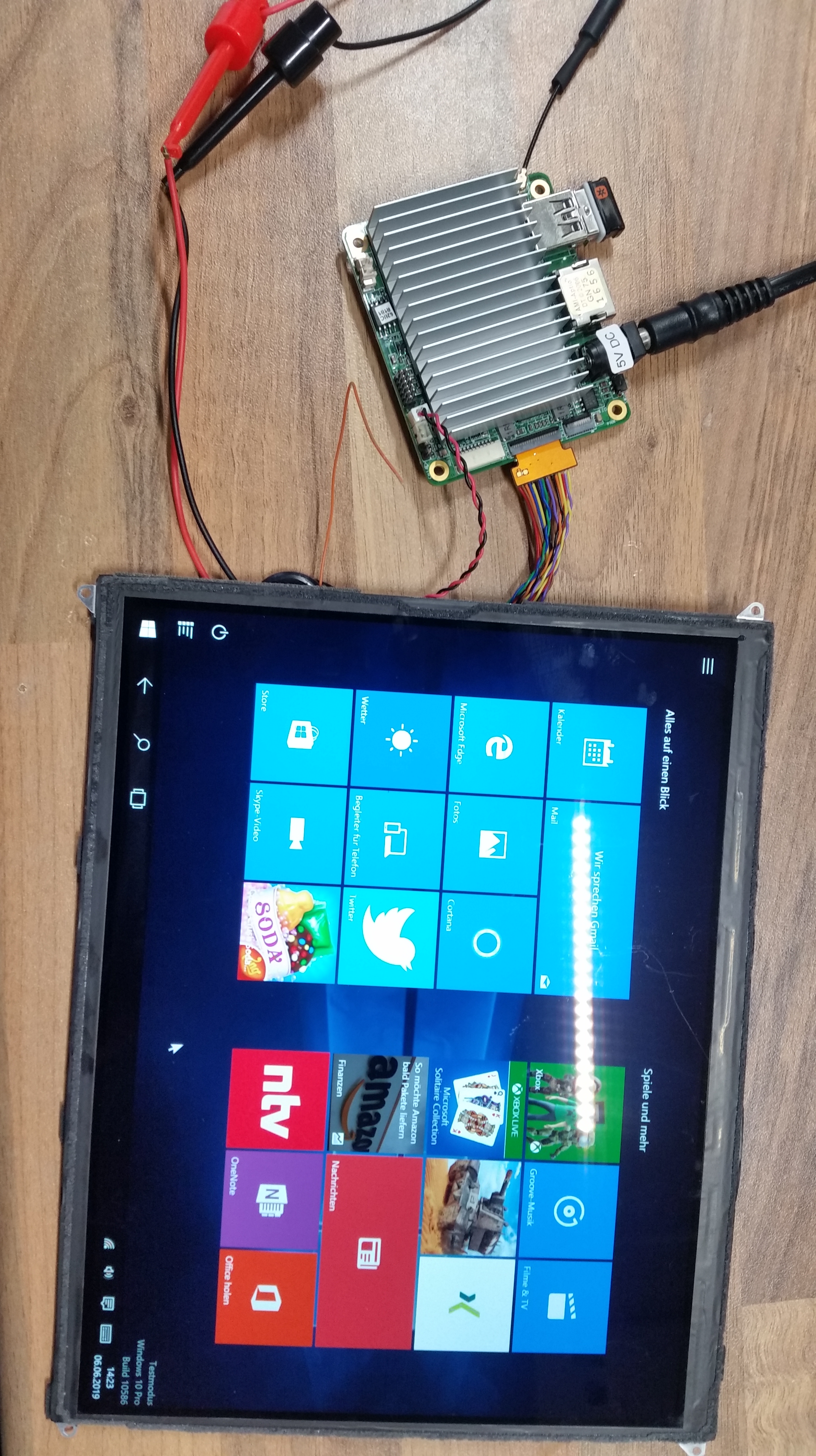

This project contains the design files for an eDP adapter and backlight driver for iPad 3 retina displays. These have 2,048 by 1,536 (2K) resolution and are 9.7 inch in diagonal. They can be ripped out of bricked or defective ipads or bought as new replacement parts for about 40$. With an adapter such as this one http://abusemark.com/store/index.php?main_page=product_info&products_id=53&zenid=li1so9u2k8e7n3u8q3j7j0uqg2 you should be able to use 7.9 inch iPad mini screens too. Capacitive touch overlays for the 9.7 inch screens with i2c to USB converters can be found on aliexpress.
