The New ESP-32S3 Dev Board Features an Ethernet and MicroSD Card Slot

11 October, 2023

1.286

Views1 Comments

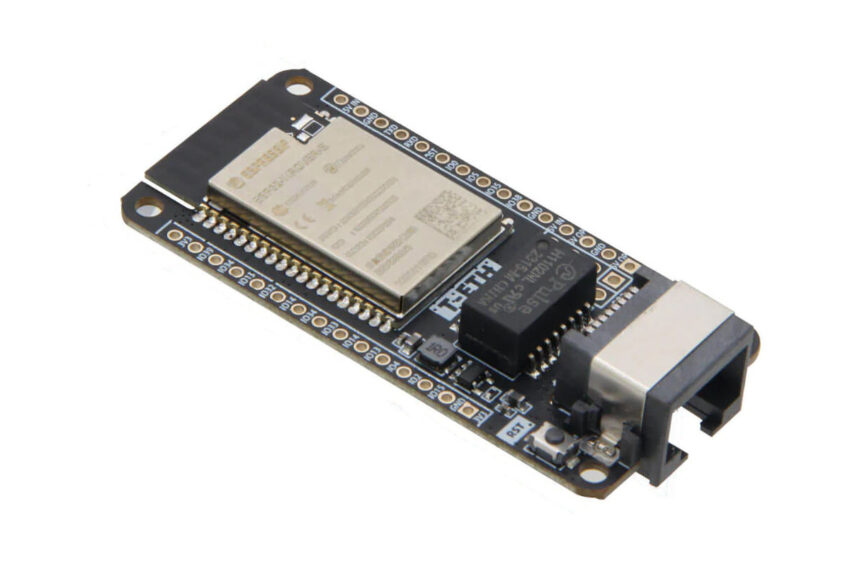

LILYGO has recently announced its latest embedded product the the T-ETH-Lite. Based on a ESP32-S3 module this compact dev board includes an Ethernet port and a microSD card slot for convenient storage.

Like other LILYGO boards, this is also based on the ESP32-S3 microcontroller, featuring a 240MHz Xtensa 32-bit LX7 dual-core processor, 16MB PSRAM, 16MB Flash, and 2.4GHz Wi-Fi/BLE 5.0 connectivity.

The GitHub repository for the T-ETH-Series provides information on the onboard ethernet chip, the WIZnet W5500. The official WIZnet page described this chip as

a Hardwired TCP/IP embedded Ethernet controller that enables easier internet connection for embedded systems using SPI (Serial Peripheral Interface).

The T-ETH-Lite features a MicroSD card slot, W550 Ethernet module, up to 23 GPIOs, 14 ADC, 8 touch interfaces, reset and boot buttons, powered by 5V DC, with dimensions of 59mm x 28mm x 11mm.

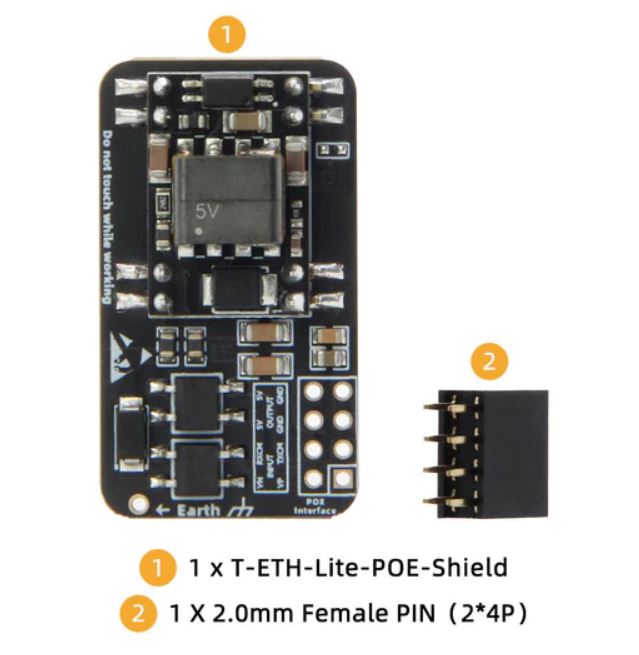

LILYGO also offers a compatible PoE module as shown above.

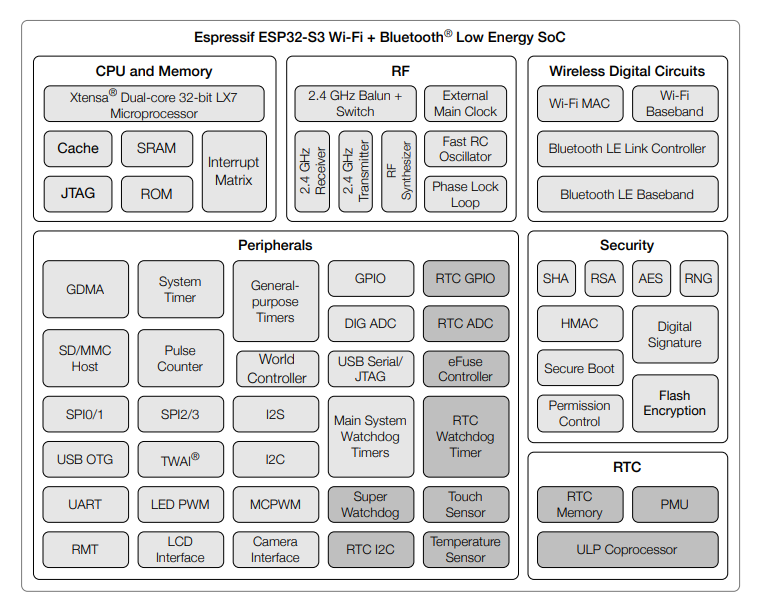

ESP32-S3 Internal Diagram

Specifications listed for the T-ETH-Lite include:

Storage: MicroSD card slot
Connectivity: Ethernet (10/100 Mbps, supports Wake on LAN)
I/O: 23 GPIOs, 14 ADC channels, 8 touch sensors
Features: Reset and Boot buttons
Power: 5V DC input
Dimensions: 59mm x 28mm x 11mm

The T-ETH-Lite with ESP32-S3 and PoE modules is available on AliExpress for $25.98. The development board costs $14.88, while the PoE module costs $11.43. For additional information or to purchase, visit the LILYGO online store.
