Topaz Tz170 J484 Development Kit features a 16 nm Efinix Quantum fabric FPGA and 256 Mbit of LPDDR4 memory

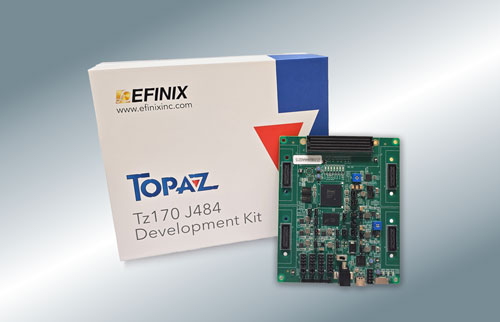

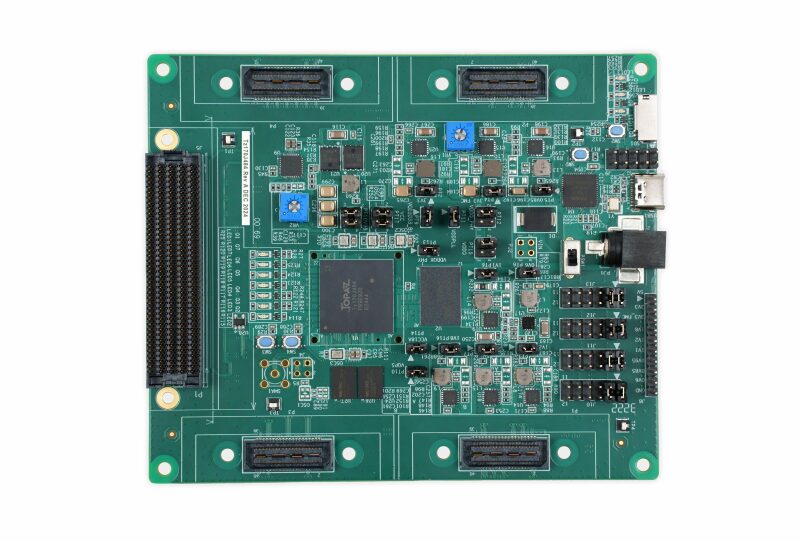

The Topaz Tz170 J484 FPGA Development Kit from Efinix is a compact FPGA evaluation platform built around the Efinix Tz170 FPGA for evaluating and prototyping. This FPGA is built around a low-power, high-density 16 nm Quantum fabric and comes in a compact 484-ball FineLine BGA package. It integrates onboard memory, configurable I/O, and a preloaded reference design, providing a practical setup for testing and demonstration across a range of FPGA applications.

The FPGA devkit supports hardware-level MIPI D-PHY with data rates of up to 2 Gbps per lane. It also incorporates a hardened LPDDR4 controller designed for high-speed memory access. Additionally, it includes a MicroSD card slot, dual SPI NOR flash memories, and high-speed QSE connectors for Efinix or custom daughter cards. An FMC connector with a low pin-count interface allows further extension using FPGA mezzanine cards.

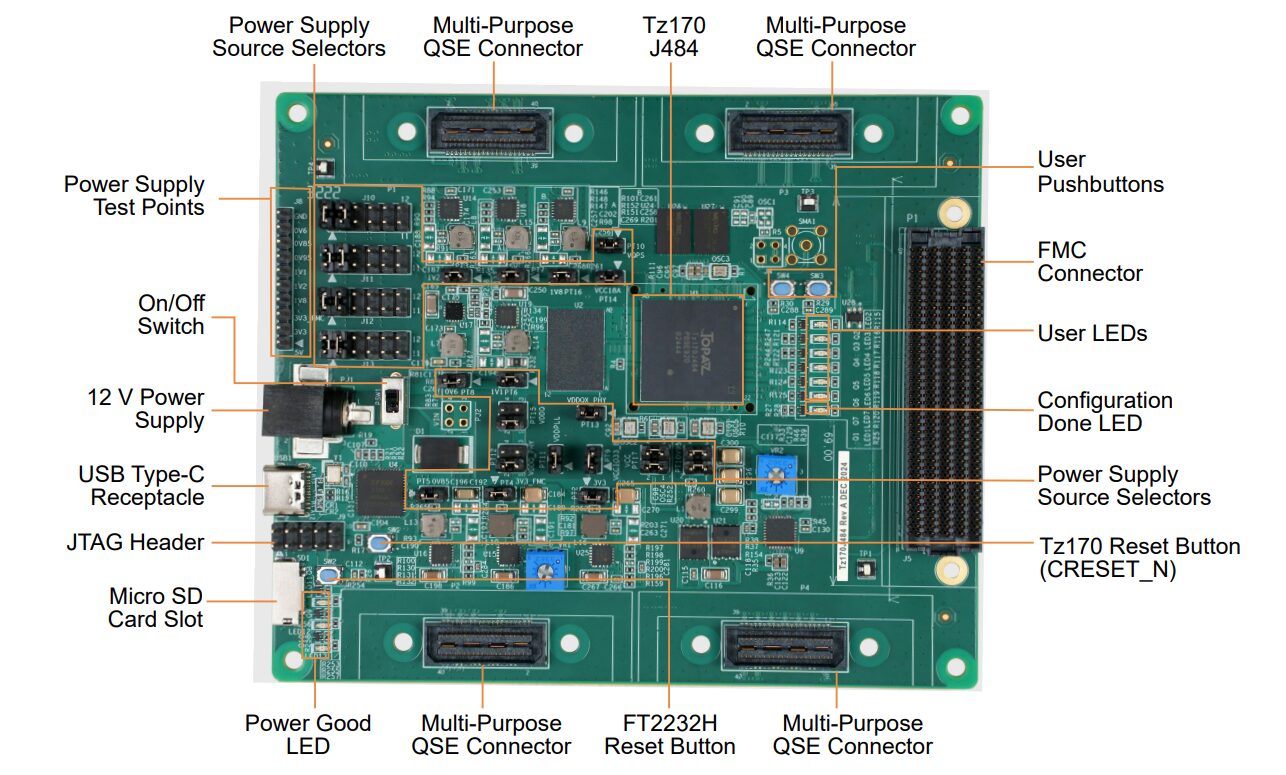

Topaz Tz170 J484 FPGA Development Kit specifications:

• FPGA: Efinix Tz170J484 in 484-ball FineLine BGA package
  • Fabric: 16nm Efinix Quantum technology
• Memory:
  • 256Mbit x32-bit LPDDR4 SDRAM (up to 1.6Gbps DDR)
  • Hardened LPDDR4 memory controller
• Storage:
  • 2x 256 Mbit SPI NOR flash
  • microSD card slot
• Interfaces:
  • 4x QSE connectors (MIPI, LVDS, GPIO support)
  • FMC connector (Low Pin Count)
  • Hardened MIPI D-PHY (up to 2Gbps/lane)
• USB: USB Type-C port for FPGA configuration
• Debug: JTAG header
• Clocks: 33.33MHz, 50MHz, 74.25MHz PLL oscillator inputs
• Misc:
  • 6x user LEDs
  • 2x push-button switches
  • Power-good and config-done indicator LEDs
• Power:
  • 12V DC input via barrel jack
  • Onboard power rails: 0.62V, 0.85V, 0.95V, 1.1V, 1.2V, 1.8V, 3.3V, 5.0V
• Dimensions: Not specified

The Tz170 J484 development kit is particularly suitable for use in applications like edge AI, machine vision, industrial automation, and consumer electronics, where small form factor, versatile I/O configurations, and high-speed interfaces are critical. It comes with access to the Efinity software suite, which offers a full FPGA development flow—from RTL design to bitstream generation. The toolchain accommodates synthesis, place-and-route, timing analysis, and debugging, and it has a one-year license with free upgrades and the possibility to extend maintenance for free. The software is configured to accommodate custom logic and SoC implementations, with tools individually optimized for Topaz FPGA interfaces. More information is provided on the Efinity Software product page.

We’ve previously covered several FPGA development kits, including the AXE5-EAGLE-ES, Sipeed Tang Mega 138K Dock, Alinx VD100, and iWave iW-RainboW-G58M, among others. Feel free to check them out if you’re interested in exploring similar products.

The Topaz Tz170 J484 FPGA Development Kit is currently listed on DigiKey, which can be purchased for $400.00. For more information, it is recommended to go through the Efinix product page.
