Sensirion LPG10-1000 Digital Planar Liquid Flow Sensor

Sensirion LPG10-1000 Digital Planar Liquid Flow Sensor

1.067
Views
0 Comments

Sensirion LPG10-1000 Digital Planar Liquid Flow Sensor provides high performance and speed in measuring liquid flow in a planar microfluidic glass substrate with down-mount fluidic ports for highly compact integration into any fluidic manifold system. Measuring 10mm x 10mm x 2.35mm3, the LPG10-1000 is ideal for high-volume applications with strict space limitations. Microfluidics chips and digital microsensor chips are combined to measure liquid flow inside a planar glass substrate. The digital microsensor chip provides full signal processing functionality for a fully calibrated, temperature compensated, linearized digital output.

The LPG10-1000 is a smart sensor solution offering flow rates from the low microliter per minute to 1ml/min. Glass, the wetted material, ensures optimum compatibility with biological and pharmaceutical processes. Due to the small thermal mass, response times below 30ms can be reached. The Sensirion LPG10-1000 Digital Planar Liquid Flow Sensor also offers real-time detection of failures such as clogging, air bubbles, or leaks.

Features

  • Ultra-small 10mm x 10mm x 2.35mm size
  • Excellent repeatability
  • Completely calibrated, digital linearized output signal
  • Excellent media compatibility and chemical resistance
  • Media isolated sensing principle – no direct sensor contact with the fluid
  • Bio-compatible and consists of inert materials
  • Digital I2C interface

Specifications

  • 1000µl minimum full-scale flow rate
  • 1500µl minimum sensor output limit
  • Response time
    • 40ms for flow detection
    • 120ms for power-up
  • Temperature ranges
    • +5°C to +50°C operating
    • -40°C to +60°C storage
  • 0 to 95% humidity, non-condensing
  • 3bar (43psi) recommended maximum operating pressure
  • 7bar (101psi) burst pressure
  • Digital sampling time
    • 74ms at 16-bit
    • 1ms at 9-bit
  • 3.3VDC to 3.6VDC operating voltage range
  • <6mA typical operating current
  • Borosilicate glass internal substrate channel material
  • Downmount fluidic connection
  • 0.1mbar pressure drop at the full-scale flow rate
  • ~11.7µl total internal volume
  • ~0.32g total mass
  • ~0.9mm x 0.9mm cross-section flow channel

Development Tools

Sensirion LPG10-1000 Evaluation Kit

Evaluation kit for testing the LPG10-1000 Digital Planar Liquid Flow Sensors.

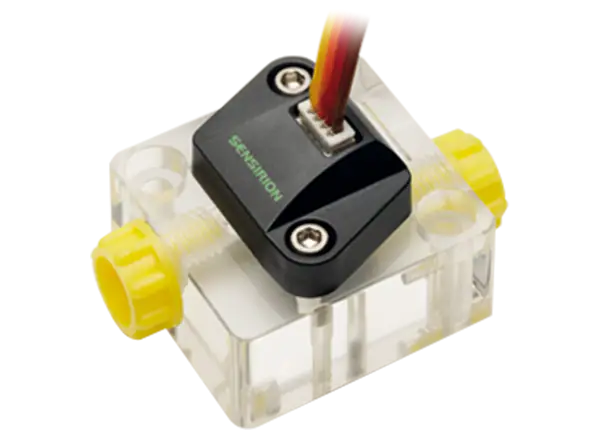

Sensirion LPG10-1000 Evaluation Kit includes one LPG10-1000 sensor, preassembled in a fluidic manifold (PMMA), featuring ¼-28 flat bottom fluidic fittings. The fluidic seal between sensor and manifold is ensured using two O-Rings (FKM). The included connector cap secures the sensor to the manifold and features a 4-pin Molex connector. The included Molex adapter cable, USB cable, and software allow for easy evaluation using a PC.

Kit Contents

  • 1x LPG10-1000 sensor, preassembled in a fluidic manifold (PMMA), featuring ¼-28 flat bottom fluidic fittings
  • 2x O-Rings (FKM)
  • Connector cap with a 4-pin Molex connector
  • Molex adapter cable
  • USB-cable
  • Software
