ESP32-LyraT

ESP32-LyraT is an open-source development board, supporting Espressif Systems’ ADF (ESP-ADF Audio Development Framework), one-key Wi-Fi configuration, a wake-up button, voice wake-up, voice recognition, cloud platform access, and an audio player.

The goal was to improve the audio applications of the kits being produced, and this was achieved through ESP32-LyraT, the only board released by Espressif Systems with adequate documentationESP32-LyraT has different voice commands and interactive voice functions; it allows the fast development of applications relating to consumer electronics, wearables, smart speakers, smart home applications and automation. The board facilitates the quick and easy development of dual-mode (Bluetooth + Wi-Fi) audio solutions.

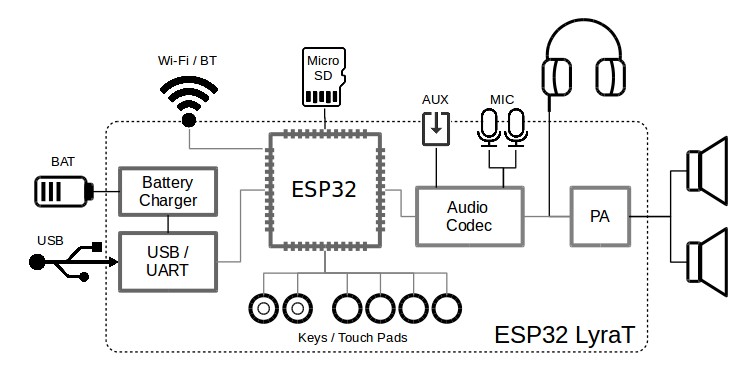

The block diagram below presents main components of the ESP32-LyraT and interconnections between components.

Esp32-LyraT Block Diagram

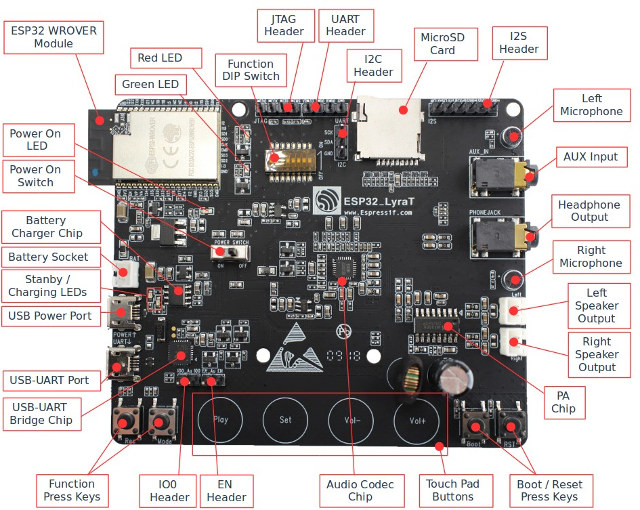

Features of ESP32-LyraT include UART, USB Power Port, a battery charger chip, an audio codec chip; a sound card which is built in the motherboard for providing sound output. There is also a PA chip, a JTAG header, and UART header. Other parts include the two keys which are the function keys and the boot keys. ESP32-LyraT has a micro SD slot available, a green and a red LED and an ESP32 WROVER Module.

Below are some of the device specifications:

  • Wireless module – ESP32-WROVER module with WiFi and Bluetooth LE
  • Audio –
    • Many audio inputs – Wi-Fi, BT-audio, DLNA, 3.5mm audio Line-in
    • 3.5mm headphone jack
    • 2x microphones
    • Speaker connectors
  • Storage – micro SD slot
  • Debugging – JTGA header, USB UART
  • Misc  – Touch sense buttons, function/boot/reset keys,  DIP switch for configuration
  • Power – 5V via micro USB port; battery header + charger chip

Some Key Featuers

  • SoftAP and Station mode.
  • Various mainstream, both lossy and lossless, compressed audio formats, including M4A, AAC, FLAC, OGG, OPUS, MP3, etc.
  • Two microphones for the development of near-field and far-field voice recognition applications.
  • BLE network configuration, and smart network configuration with apps, such as WeChat.

The ESP32-LyraT board is available for purchase and is being sold for just 22 Euros on Olimex. More information about the product can be found here, and the ESP32-LyraT User Guide is available for download here.
