NFC Key Protects Your Data by Disconnecting Chips From Antenna

Cameron Coward @ blog.hackster.io writes:

Like most connected technology these days, near-field communication (NFC) is susceptible to hacking. By its very nature, NFC is normally accessible by anyone nearby. NFC, as it was originally intended, is designed to provide data wirelessly to any nearby readers without requiring a power source of its own.

Fortunately, N-O-D-E, one of our favorite open source hardware developers, has come up with a solution called the NFC Key. This handy little keychain-friendly device protects your NFC chips in the simplest way possible: by physically disconnecting them from the antenna. Without the antenna connected, the chips just cannot be powered or transmit data.

NFC Key Protects Your Data by Disconnecting Chips From Antenna – [Link]

A multi-protocol SoC for ultra low-power wireless applications

Author: Maurizio Di Paolo Emilio

The nRF52840 SoC of Nordic Semiconductor is based on a 32-bit ARM Cortex-M4F CPU running at 64 MHz with flash and RAM integrated on chip. Ultra low-power wireless applications can use this advanced multi-protocol SoC with different communication protocols.  The 2.4 GHz transceiver supports Bluetooth low energy (Bluetooth 5), 802.15.4, ANT and proprietary protocols. The transceiver also supports high resolution RSSI measurement and automated processes to reduce CPU load. Moreover, EasyDMA for direct data memory access and packet assembly provides full support for hardware (figure 1). The device maintains the compatibility with existing products such as nRF52, nRF51 and nRF24 series.

ultra low-power wireless applications
Figure 1: Block diagram of the nRF52840 SoC

Bluetooth 5 and SoC

Bluetooth 5 (500kbs e 125kbs) is the latest version of the well-known wireless technology. It increases the range of four times and the throughput of eight times, making this technology much more suitable for ultra low-power wireless applications such as wearable, Smart Home and more generally for Internet-related applications (IoT, IIoT). The ultra low power consumption of the Bluetooth 5 protocol facilitates high performance, advertising extension and modulation schemes.

nRF52840 SoC uses power management resources to maximize job processes and achieve an optimal energy efficiency. The power supply ranges between 1.7V and 5.5V ensures a wide choice of batteries. In addition, SoC can also work with USB direct power supply without external regulators. Especially relevant, all devices have automatic clock management with adaptive features to maintain minimal power consumption.

Features:

  • multi-protocol SoC
  • 32-bit ARM Cortex-M4F Processor
  • 1.7v to 5.5v operation
  • 1MB flash + 256kB RAM
  • Bluetooth 5 support for long range and high throughput
  • 802.15.4 radio support
  • On-chip NFC
  • PPI –Programmable Peripheral Interconnect
  • Automated power management system with automatic power management of each peripheral
  • Configurable I/O mapping for analog and digital I/O
  • 48 x GPIO
  • 1 x QSPI
  • 4 x Master/Slave SPI
  • 2 x Two-wire interface (I²C)
  • I²S interface
  • 2 x UART
  • 4 x PWM
  • USB 2.0 controller
  • ARM TrustZone CryptoCell-310 Cryptographic and security module
  • AES 128-bit ECB/CCM/AAR hardware accelerator
  • Digital microphone interface (PDM)
  • Quadrature decoder
  • 12-bit ADC
  • Low power comparator
  • On-chip 50Ω balun
  • On-air compatible with nRF52, nRF51 and nRF24 Series

Development kit

The NRF52840-PDK is a versatile development kit based on nRF52840 SoC for the development of projects by using Bluetooth Low Energy, ANT, 802.15.4, and proprietary 2.4GHz protocols. Moreover, It is also hardware-compatible with the Arduino Uno R3 standard, allowing to use third-party compatible shields. Adding an NFC antenna, the kit enables the NFC tag feature (figure 2 and 3).

ultra low-power wireless applications
Figure 2: NRF52840-PDK development kit



ultra low-power wireless applications
Figure 3: block diagram of the NRF52840-PDK development kit



MDBT42Q, nRF52832-based BLE module

The open hardware innovation platform Seeedstudio produces the MDBT42Q, a Bluetooth Low Energy (BLE) module. It is a BT 4.0, BT 4.1 and BT 4.2 module designed based on Nordic nRF52832 SoC, a powerful, highly flexible ultra-low power multiprotocol SoC ideally suited for Bluetooth low energy, ANT and 2.4GHz ultra low-power wireless applications.

txsxl4eeqdrnhrm9pk21et1w

MDBT42Q features a dual transmission mode of BLE and 2.4 GHz RF with over 80 meters working distance in open space. It is a 16 x 10 x 2.2 mm board which contains GPIO, SPI, UART, I2C, I2S, PWM and ADC interfaces for connecting peripherals and sensors.

nrf52832_mediumThe nRF52832 SoC is built around a 32-bit ARM® Cortex™-M4F CPU with 512kB and 64kB RAM. The embedded 2.4GHz transceiver supports Bluetooth low energy, ANT and proprietary 2.4 GHz protocol stack. It is on air compatible with the nRF51 Series, nRF24L and nRF24AP Series products from Nordic Semiconductor.

MDBT42Q Specifications:

  • Multi-protocol 2.4GHz radio
  • 32-bit ARM Cortex – M4F processor
  • 512KB flash programmed memory and 64KB RAM
  • Software stacks available as downloads
  • Application development independent from protocol stack
  • On-air compatible with nRF51, nRF24AP and nRF24L series
  • Programmable output power from +4dBm to -20dBm
  • RAM mapped FIFOs using EasyDMA
  • Dynamic on-air payload length up to 256 bytes
  • Flexible and configurable 32 pin GPIO
  • Simple ON / OFF global power mode
  • Full set of digital interface all with Easy DMA including:
  • 3 x Hardware SPI master ; 3 x Hardware SPI slave
  • 2 x two-wire master ; 2 x two-wire slave
  • 1 x UART (CTS / RTS)
  • PDM for digital microphone
  • I2S for audio
  • 12-bit / 200KSPS ADC
  • 128-bit AES ECB / CCM / AAR co-processor
  • Lowe cost external crystal 32MHz ± 40ppm for Bluetooth ; ± 50ppm for ANT Plus
  • Lowe power 32MHz crystal and RC oscillators
  • Wide supply voltage range 1.7V to 3.6V
  • On-chip DC/DC buck converter
  • Individual power management for all peripherals
  • Timer counter
  • 3 x 24-bit RTC
  • NFC-A tag interface for OOB pairing
  • RoHS and REACH compliant

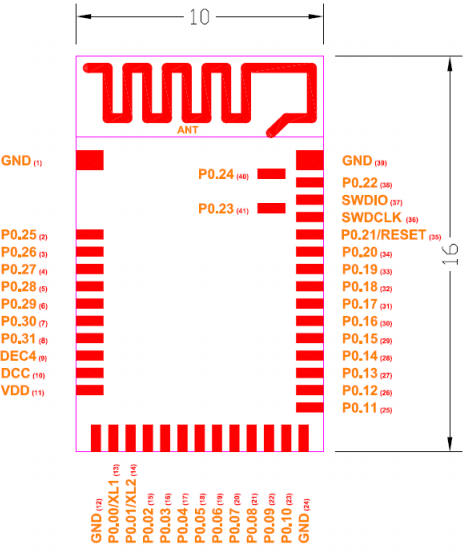

pcb

This BLE module can be used in a wide range of applications, such as Internet of Things (IoT), Personal Area Networks, Interactive entertainment devices, Beacons, A4WP wireless chargers and devices, Remote control toys, and computer peripherals and I/O devices.

Full specifications, datasheet, and product documents are available at seeedstudio store, it can be backordered for only $10.

Contactless payment ring – A tutorial on NFC antenna coil design

Jatinder has tipped us with this latest post. He writes:

 I have a done a video about a contactless payment (NFC) ring that I have made. The video talks about NFC antenna coil design and how I used the concepts to make the wearable ring.

Contactless payment ring – A tutorial on NFC antenna coil design – [Link]
