The latest design from Seeed Studio is one that will pique your interest if you are a software router enthusiast, a Linux developer, an HTPC maker, or just the regular Raspberry Pi user. It is a carrier board for the Raspberry Pi Compute Module 4 and it offers two Gigabit Ethernet ports.

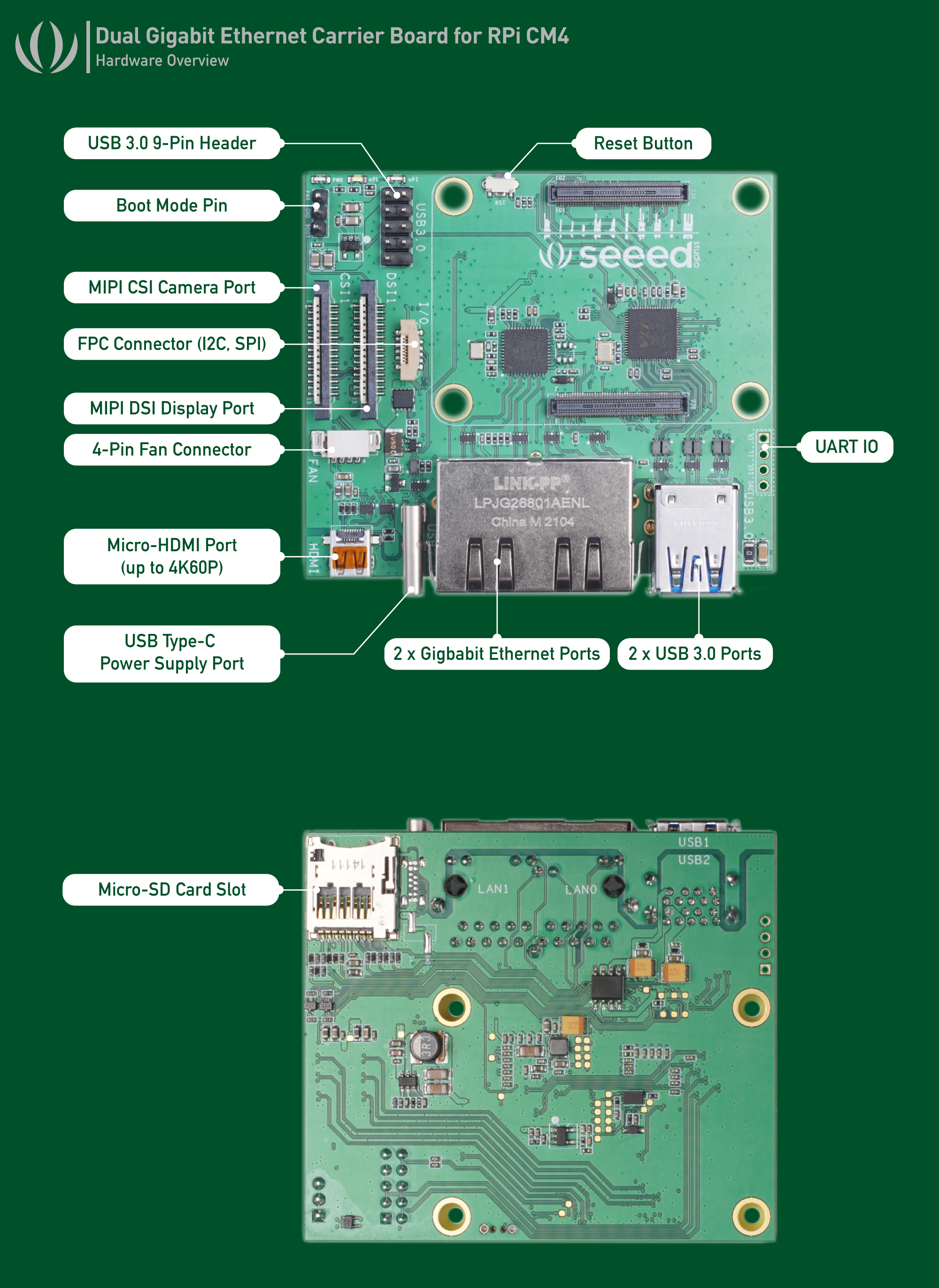

“The Dual Gigabit Ethernet Carrier Board for the Raspberry Pi Compute Module 4 was designed with soft router applications in mind,” says Seeed Studio. “It features dual Gigabit Ethernet ports, dual USB 3.0 ports, a rich set of I/O peripherals such as MIPI CSI, MIPI DSI and micro-HDMI for display and camera connectivity, a standard 9-pin USB 3.0 for further USB expansion, microSD card slot and FPC connector. Despite this, the Dual Gigabit Ethernet Carrier Board maintains a small form factor of 75 by 64 by 21mm [around 2.95 x 2.52 x 0.82in] – that’s one third the size of the official I/O Board!”

The carrier board is designed in a way that allows users to explore more possibilities with CM4. The MicroSD card slot in the compact carrier board implies that it can support all Raspberry Pi CM4 boards including those without an onboard eMMC storage like the Compute Module 4 Lite family. The carrier board will support up to 8GB of LPDDR4 RAM and 32GB of eMMC storage. Extra connectivity for the carrier board is provided by the Wi-Fi and Bluetooth onboard selected CM4 boards.

Features and Specifications of the Dual Gigabit Ethernet Carrier Board include:

  • 2x Gigabit Ethernet connectors for soft router applications
  • Camera / display connectivity using:
    • 1x MIPI CSI connector
    • 1x MIPI DSI connector, and,
    • 1x Micro HDMI connector
  • Onboard 2x USB 3.0 with 1x additional USB 3.0 9-pin header for more external ports
  • 1x microSD card slot to load system image for non-eMMC version of CM4
  • More expandability via FPC Connector (I2C, SPI)
  • External fan support with fan power connector
  • USB 3.0 to GbE (Gigabit Ethernet Bridge): Microchip’s LAN7800
  • Power Supply: 5V/3A using USB Type-C Port
  • Dimensions: 75 mm x 64 mm x 21 mm
  • Weight: 43 grams
  • Temperature Range: -40°C to +85°C

Application scenarios include:

  • Smart home
  • Internet of Things
  • Gateways
  • Routers
  • Camera projects

Pricing and Availability

The Dual Gigabit Ethernet Carrier Board is currently available for pre-order on Seeed Studio at $45 but the company is offering some discounts for those who will be purchasing in bulk units — $43 for quantities above 10 but less than 20, while $41 for 20 and above. Shipping is expected to start before the end of April this year.
