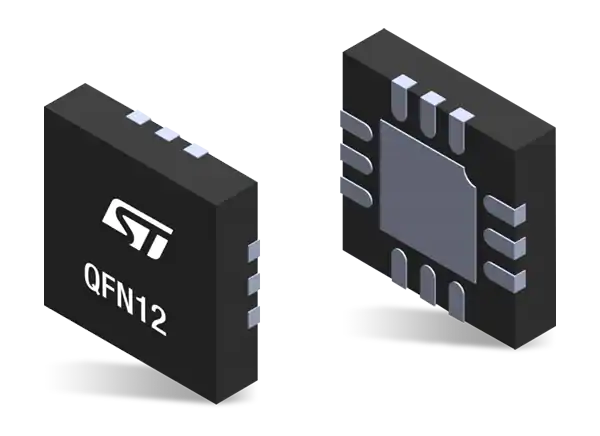

STMicroelectronics TCPP01-M12 USB Type-C Port Protection is a single-chip solution that facilitates the migration from USB legacy connectors type-A or type-B to USB Type-C connectors. This Type-C port protection features overvoltage protection on VBUS, adjustable up to 22 V, with external N-channel MOSFET. The TCPP01-M12 USB port protection includes an integrated charge pump to control the gate of an external N-channel MOSFET. This Type-C port protection offers Over Temperature Protection (OTP), open-drain fault reporting, and integrated dead battery.

The TCPP01-M12 USB port protection operates at -40°C to 85°C junction temperature range. This Type-C port protection function with 6V overvoltage protection, 150°C junction-to-ambient thermal resistance, and 122μA supply current. The TCPP01-M12 USB Type-C port protection is ideal for use in sink configuration, source configuration, UFP or DFP configuratioN, power delivery, and PPS compliant.


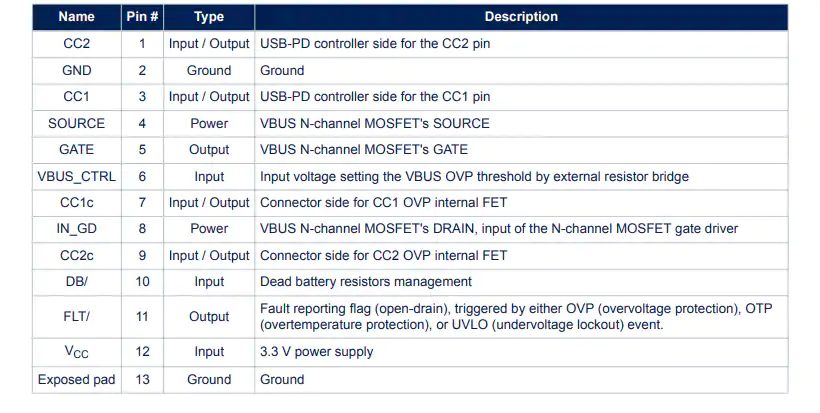

  • Overvoltage protection on VBUS with external N-channel MOSFET
  • System-level ESD protection for USB type-C connector pins
  • Compliant with IEC 61000-4-2 level 4
  • Integrated charge pump to control the gate of an external N-channel MOSFET
  • Null quiescent current when no USB charging cable is attached for battery operated “consumer/sink” applications
  • Integrated “dead battery” (RD resistors)
  • Over-temperature protection
  • Complies with the latest USB Type-C and USB power delivery standards
  • Compliant with Programmable Power Supply (PPS) as defined in the latest USB PD specification
  • Open-drain fault reporting
  • ECOPACK2 compliant


  • 6V overvoltage protection
  • At Absolute maximum ratings (Tamb = 25°C):
    • -40°C to 85°C operating junction temperature range
    • -55°C to 150°C storage temperature range
    • 150°C/W junction-to-ambient thermal resistance
  • At Power supply and leakage current, Tamb = -40 °C to 85 °C:
    • 3V to 3.6V input voltage range
    • 120μA supply current


  • USB Type-C for UFP (upstream facing port) or DFP (downstream facing port) configuration
  • USB Type-C power delivery, PPS compliant
  • USB Type-C used in sink configuration (consumer)
  • USB Type-C used in source configuration (provider)

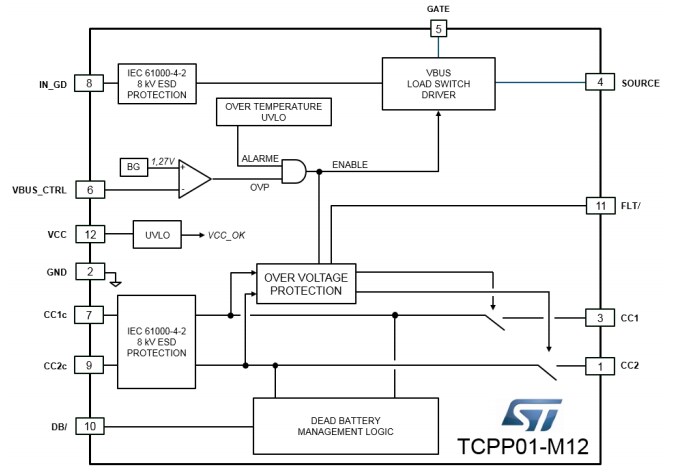

TCPP01-M12 USB Type-C Block Diagram
