HiFi-Amped Raspberry Pi Audio HAT Features Dual PCM5100 DACs,GPIO-Controlled Shutdown and TPA3110 Amplifiers

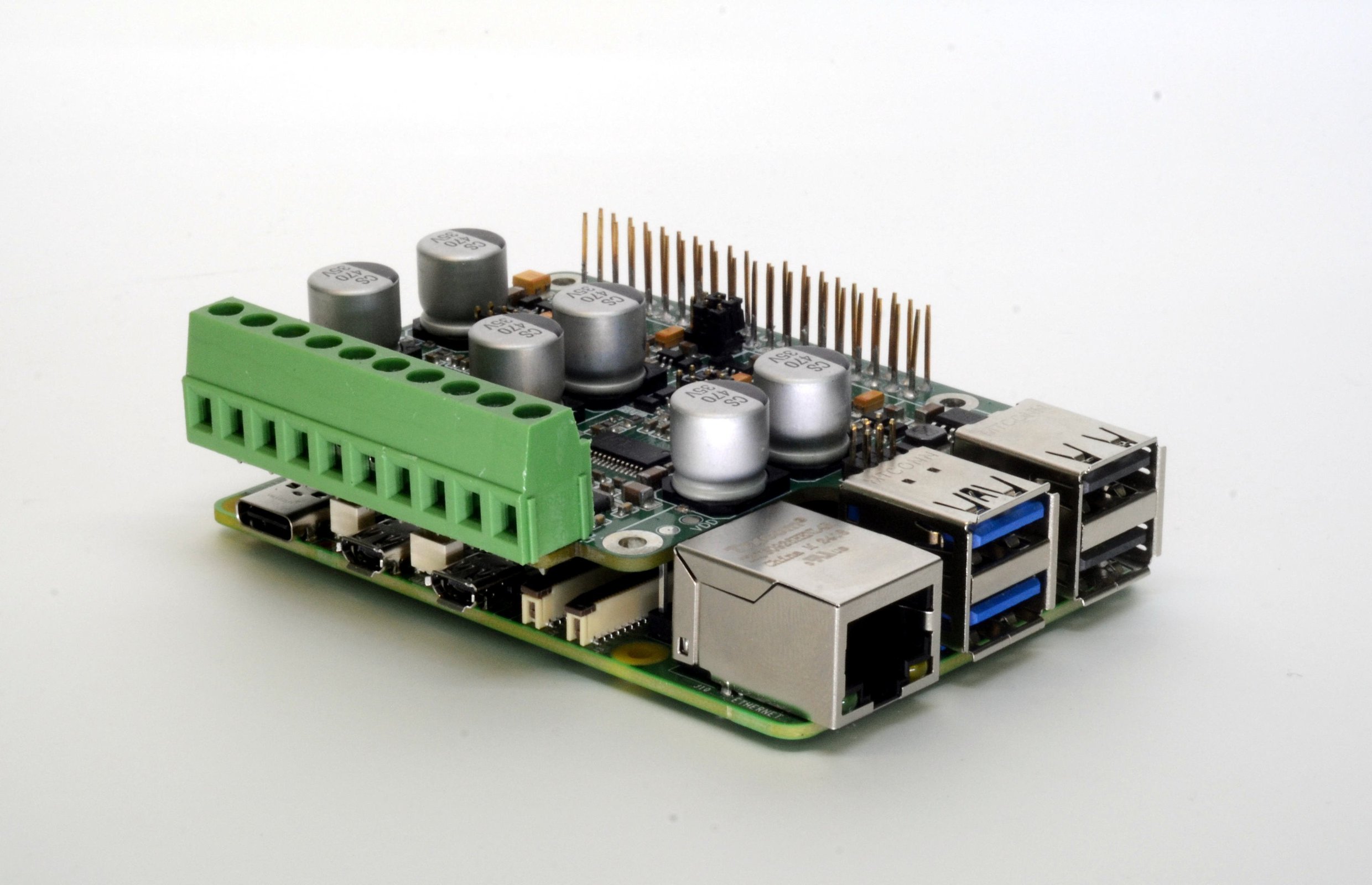

The HiFi-Amped Raspberry Pi Audio HAT is an Audio HAT with dual PCM5100A 32-bit DACs and TPA3110 class-D amplifiers, GPIO control shutdown, and more.

It delivers high-quality audio output with power options ranging from 4x 10W into 8 ohms at 13V to 2x 30W into 4 ohms in bridged mode at 16V, making it suitable for small and large speakers. The module supports Raspberry Pi 2, 3, 4, 5, Zero, and other boards with a compatible 40-pin GPIO header. It offers speaker terminals, an I2S interface for audio data, and an external 8-26V DC power input with a pass-through option to power the Raspberry Pi. The HAT includes a GPIO-controlled amplifier shutdown to minimize idle noise and works seamlessly with Raspberry Pi OS and Volumio for audio streaming or media center setups.

We have previously written by Infineon about IQAudio HAT, Orchard Audio HAT, and KIT_40W_AMP_HAT_ZW. Feel free to check those out if you are interested in the topic.

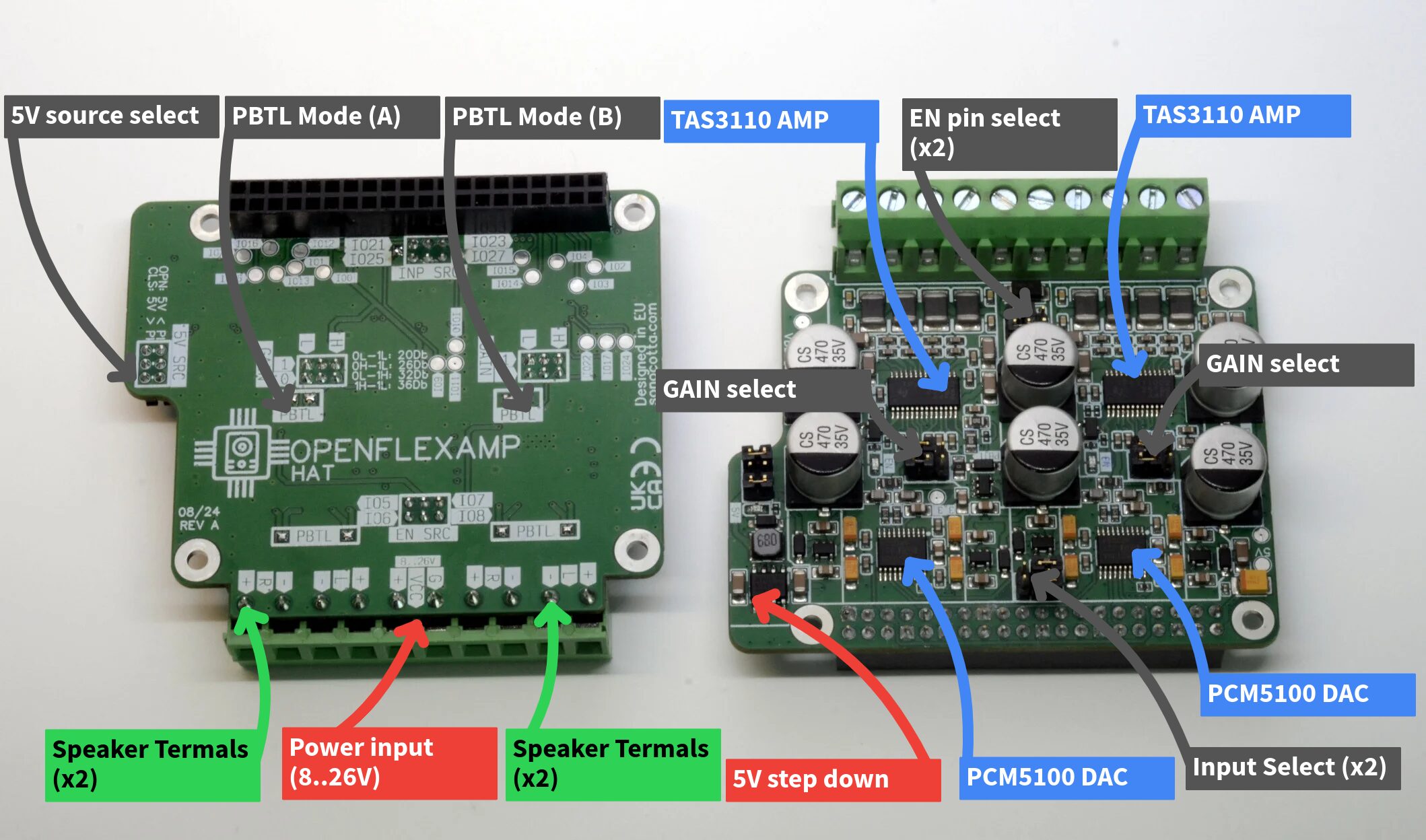

HiFi-Amped Raspberry Pi Audio HAT Specifications

• Compatibility:
  • Raspberry Pi 2, 3, 4, 5, Zero, and other boards with a Raspberry Pi-compatible 40-pin GPIO header
• DAC:
  • 2x PCM5100A 32-bit DACs for high-quality audio output
• Amplifier:
  • 2x Texas Instruments TPA3110D2 Class-D amplifiers
  • Output Power:
    • 4x 10W into 8 ohms @ 13V
    • 4x 15W into 8 ohms @ 16V
    • 2x 30W into 4 ohms @ 16V (bridged mode)
• Connectivity:
  • Standard 40-pin Raspberry Pi GPIO header
  • Speaker terminals (left and right channels)
  • I2S interface for audio data transmission
• Power:
  • External power input: 8-26V DC
  • Onboard DC-DC converter to power Raspberry Pi
  • Supports power pass-through to the Raspberry Pi
• Additional Features:
  • GPIO-controlled amplifier shut down for noise minimization when idle
• Software:
  • Compatible with Raspberry Pi OS via a simple driver overlay
  • Supports Volumio Linux distribution for music playback
  • It may require manual configuration for other Linux distributions
• Dimensions:
  • 70 x 61 x 20 mm

The HiFi-Amped audio board supports plug-and-play functionality with Raspberry Pi OS via a simple driver overlay and is compatible with Volumio for music playback. Other Linux distributions may require manual configuration. Additional details are available on GitHub.

The HiFi-Amped Raspberry Pi Audio HAT can be purchased from the Sonocotta Tindie store for $25.
