Trenz TE0802: Zynq UltraScale+ MPSoC Development Board

Trenz TE0802: Zynq UltraScale+ MPSoC Development Board

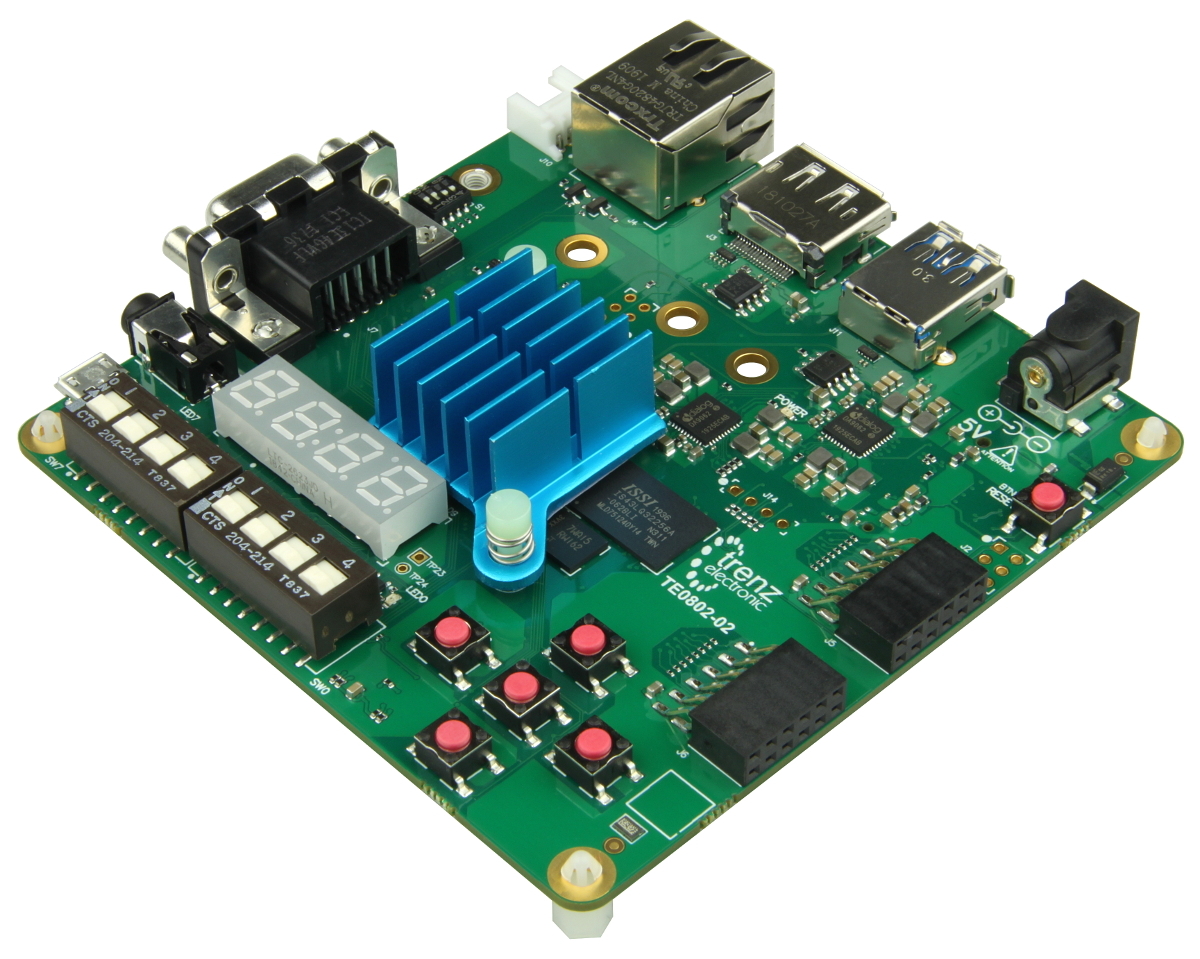

Designed and manufactured by our partner, Trenz Electronic, the TE0802 is a development board integrating a Xilinx Zynq UltraScale+ MPSoC device. The board features multiple connectivity interfaces, including DisplayPort, VGA, USB 3.0, and Gigabit Ethernet RJ45. With a cost-optimized ZU2CG UltraScale+ MPSoC, embedded developers and users familiar with Arm Cortex-R and Arm Cortex-A53 processors can get started in applications such as industrial motor control, sensor fusion, IoT, Real-time I/O, and medical devices. The versatile onboard I/O, including push buttons, slide switches, a seven-segment LED display, and 12-pin Pmod connectors, provide everything you need in one convenient package.

The Trenz TE0802 is an excellent choice for getting started with the Zynq UltraScale+ family. Applications that require higher performance may be better served with a Genesys ZU, which features a ZU3EG UltraScale+ MPSoC with additional capacity and processing power.


  • MPSoC:  XCZU2CG – Xilinx Zynq UltraScale+ MPSoC
    • Package: 1SBVA484E
    • Temperature Grade: Extended (0 to +100 °C)
  • RAM/Storage:
    • SDRAM: LPDDR4 8Gb 256Mx16x 2
    • SPI Flash 256Mb (32M x 8) 133 MHz
    • EEPROMs 2Kb (256 x 8)
  • Interfaces:
    • Two 12-pin Pmod Connectors
    • USB JTAG/UART microUSB
    • 1GB Ethernet RJ45
    • USB 3.0 Host (Type A Connector)
    • microSD Card
    • M.2 SSD PCIe
    • 3.5 mm Earphone Jack (PWM Output)
    • Display Port
    • VGA
    • 4 Digit 7-Segment LED Display
    • 8 LEDs
    • 5 User Buttons
    • 8 Bit Slide Switches
    • Reset Button
  • Power
    • 5 V +/- 10%
    • ~3.5 W
    • 3A recommended for board startup
    • 2.1mm inner diameter/5.5mm outer diameter barrel jack plug
  • Dimensions: 100mm x 100mm

more information:
